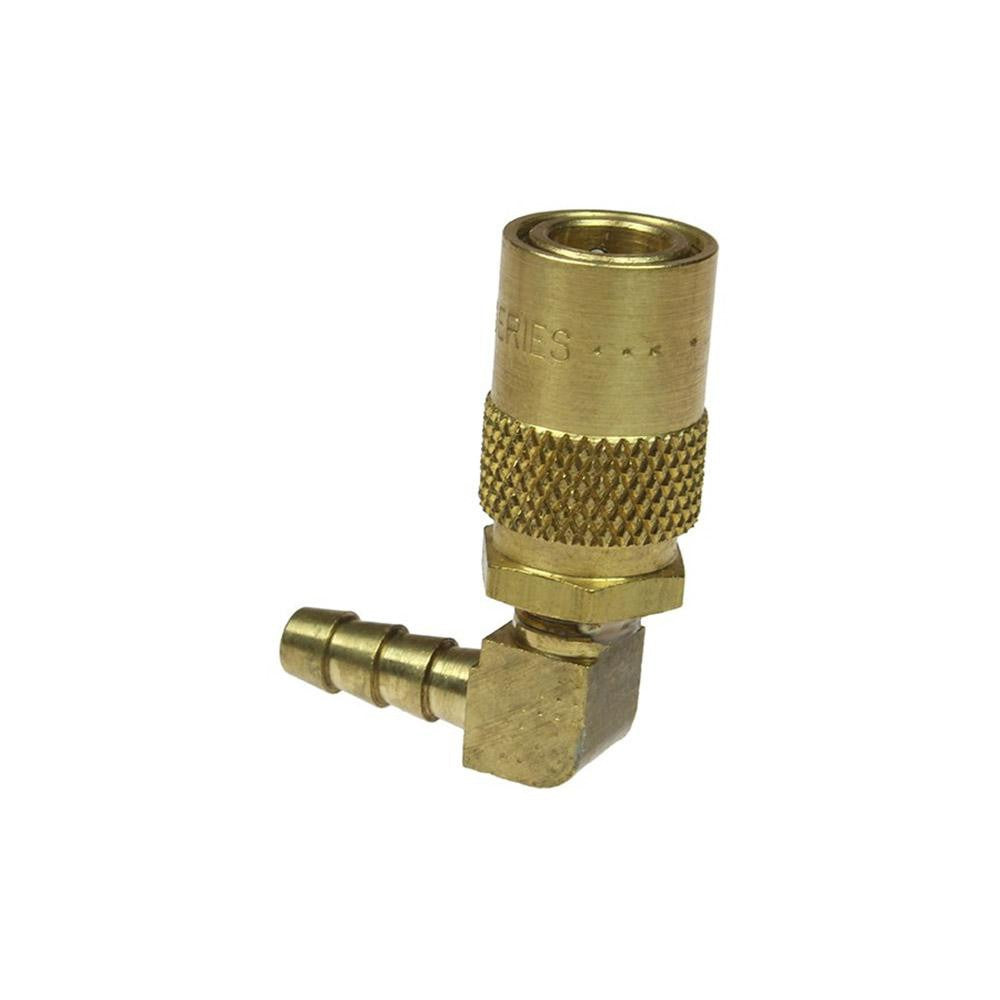

Coilhose Pneumatics 6-216 90 Degree Pneumatic Coupler

Product Description

The COILHOSE PNEUMATICS 6-216 is a 90-degree, non-valved pneumatic hose coupler designed for use in compressed air distribution systems. Machined from brass, it features a hose barb thread type and a 1/4 inch body diameter with a 3/8 inch inside diameter hose barb connection. The 90-degree body angle allows technicians to route air lines around obstructions or into tight spaces without kinking the hose. The Moldflow interchange design ensures compatibility with widely adopted coupler standards used across industrial and trade pneumatic setups. This coupler is installed by HVAC technicians, general contractors, and industrial maintenance professionals working with portable or stationary compressed air systems.

This coupler is suited for use in both light industrial and trade service environments where a right-angle connection point is needed at the hose end of a pneumatic circuit. It connects directly to the hose via the barb fitting, eliminating the need for threaded pipe fittings at the hose junction. Typical applications include air tool supply lines, pneumatic control systems, and shop air distribution setups where hose routing flexibility is required.

Key Features

• 90-degree body angle for routing air lines in confined or angled spaces
• Non-valved design allows unrestricted airflow when connected
• Brass construction provides corrosion resistance and durability in compressed air service
• Hose barb thread type for direct hose attachment without additional fittings
• Moldflow interchange standard for broad coupler compatibility
• 1/4 inch body diameter with 3/8 inch inside diameter hose barb

Compatibility

Designed as an OEM-style replacement or addition for pneumatic systems using Moldflow interchange-standard couplers with a 1/4 inch coupler size and 3/8 inch inside diameter hose barb connections.

Installation Notes

Installation is performed by qualified pneumatic system technicians or maintenance professionals. Depressurize and bleed down the air supply line completely before disconnecting or installing any coupler. Secure the hose barb connection with an appropriate clamp to prevent blowoff under system pressure. Follow applicable OSHA compressed air safety guidelines and local codes when servicing pneumatic systems.
