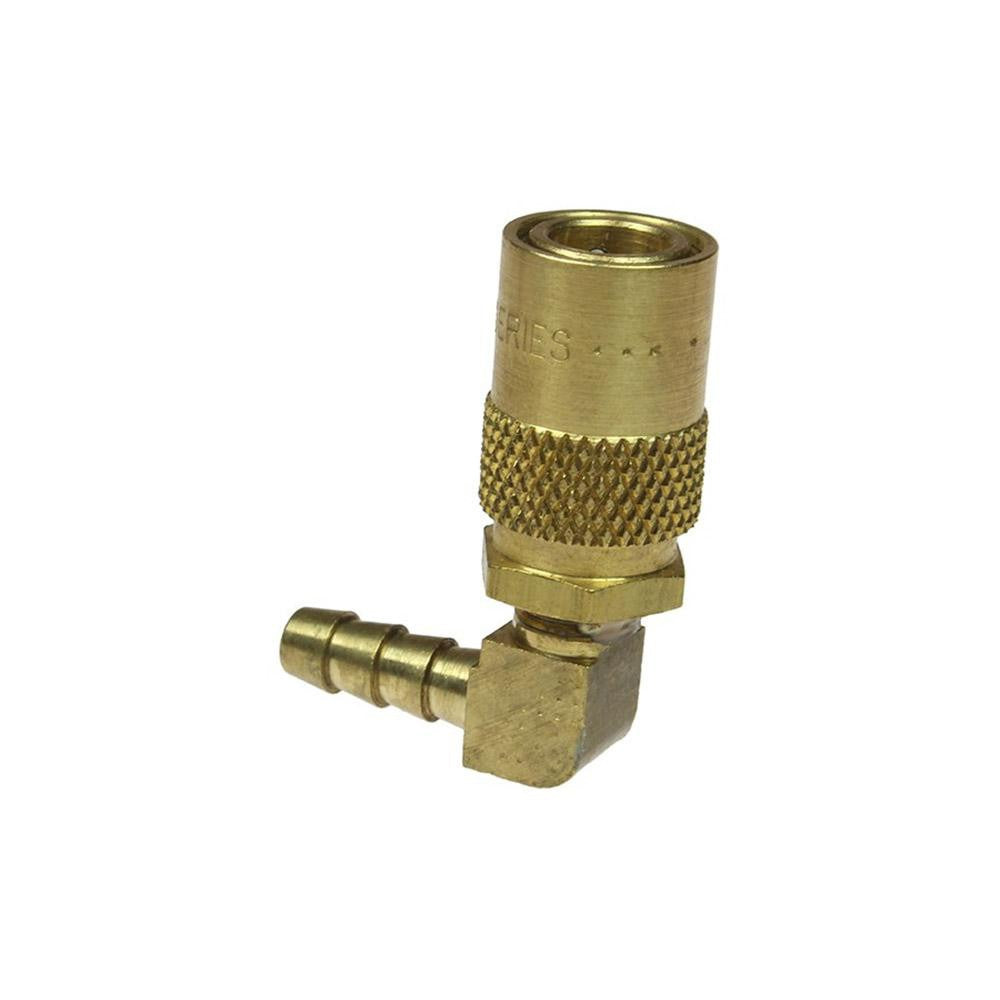

Coilhose Pneumatics 6-214 Pneumatic Hose Coupling 1/4 in

Product Description

The COILHOSE PNEUMATICS 6-214 is a 90-degree, non-valved pneumatic hose coupling designed for use in compressed air distribution systems. It features a Moldflow interchange profile with a hose barb thread type, allowing direct connection to 1/4-inch inside diameter hose without the need for a valve insert. The body measures 1/4 inch in diameter and is machined from brass, offering reliable corrosion resistance in typical shop air environments. This coupling is installed by HVAC technicians, industrial maintenance mechanics, and pneumatic system assemblers as part of quick-connect or fixed hose assemblies.

This coupling is suited for light to medium industrial and commercial compressed air applications where a 90-degree hose exit angle is required to reduce hose stress or accommodate tight routing. The hose barb design secures 1/4-inch ID air hose without additional fittings, simplifying assembly. The Moldflow interchange standard ensures it mates correctly with compatible Moldflow-series couplers and plugs found on pneumatic tools and air lines in shop and field service environments.

Key Features

• 90-degree coupler body reduces hose kinking and allows angled hose routing in confined spaces
• Non-valved design allows unrestricted airflow when connected
• Moldflow interchange standard for broad tool and fitting compatibility
• Hose barb thread type secures 1/4-inch ID hose directly
• Brass construction provides corrosion resistance in compressed air service
• 1/4-inch body diameter suits standard light-duty pneumatic hose assemblies

Compatibility

Designed as a Moldflow interchange replacement or new-installation coupling for compressed air systems using 1/4-inch inside diameter hose and Moldflow-series pneumatic components.

Installation Notes

Installation is typically performed by a pneumatic systems technician or industrial maintenance mechanic. Depressurize and bleed the air line completely before disconnecting or installing any coupling. Secure the hose barb connection with an appropriate hose clamp or crimp to maintain a leak-free seal under operating pressure. Inspect the mating plug and hose end for damage or debris before assembly.
