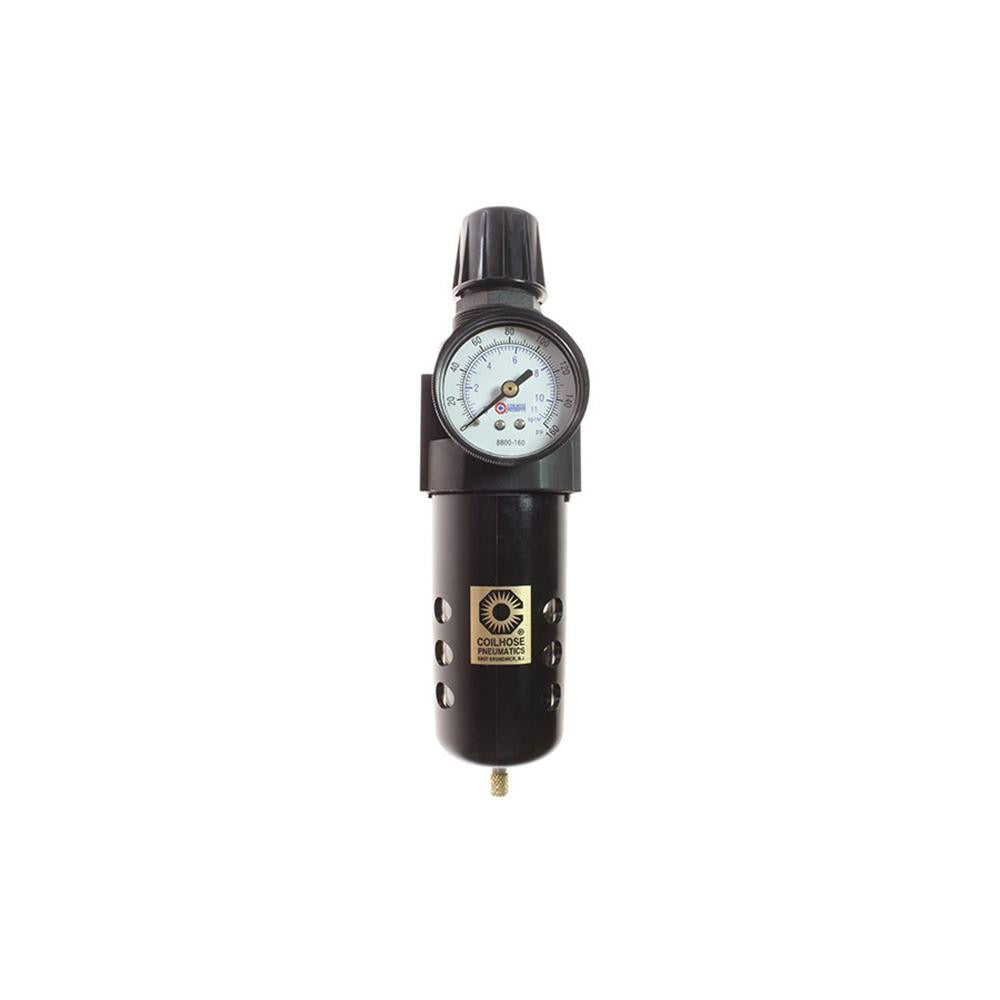

Coilhose Pneumatics 27FC4-G Frl Filter Regulator 1/2 Npt

Product Description

The COILHOSE PNEUMATICS 27FC4-G is a single-piece filter/regulator combination unit designed for compressed air lines in industrial and commercial pneumatic systems. It filters particulates down to 40 microns while regulating downstream pressure, delivering up to 127 SCFM at a maximum supply pressure of 150 psi. The cast aluminum body provides durability under continuous service conditions. A polycarbonate bowl with an integral bowl guard allows visual monitoring of the condensate level. A 1/4 NPT gauge port with an included pressure gauge gives technicians a direct downstream pressure reading at the unit. The manual drain makes routine condensate removal straightforward during scheduled maintenance.

This unit is suited for general-purpose compressed air filtration and pressure regulation in industrial plants, production facilities, and mechanical rooms. It installs on air supply lines where a compact, single-piece FRL solution is needed in place of separate filter and regulator components. The 1/2 NPT port size fits standard compressed air distribution piping commonly found in light to medium industrial installations. The modular connection design allows integration into multi-unit FRL assemblies where additional components may be added. Maximum operating temperature is 120 degrees F, making it appropriate for ambient-temperature compressed air applications.

Key Features

• Single-piece filter/regulator design reduces installation footprint compared to separate components
• 40-micron filtration rating removes particulates from compressed air supply
• 127 SCFM flow capacity supports moderate to high-demand pneumatic circuits
• 150 psi maximum supply pressure rated for standard industrial compressed air systems
• Polycarbonate bowl with bowl guard for safe visual condensate level inspection
• Pressure gauge included via 1/4 NPT gauge port for direct downstream monitoring
• Modular connection compatible for multi-stage FRL assembly configurations

Compatibility

Designed as an OEM-style replacement and direct-install filter/regulator combination unit for 1/2 NPT compressed air supply lines in industrial pneumatic systems. Part of the COILHOSE PNEUMATICS Series 27 FRL product family.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or pipefitter. Depressurize and lock out the compressed air supply line before removing any existing components or installing this unit. Apply thread sealant appropriate for compressed air service to all NPT connections per shop or facility standards. Do not exceed the 150 psi maximum supply pressure rating or the 120 degrees F maximum temperature rating during operation.
