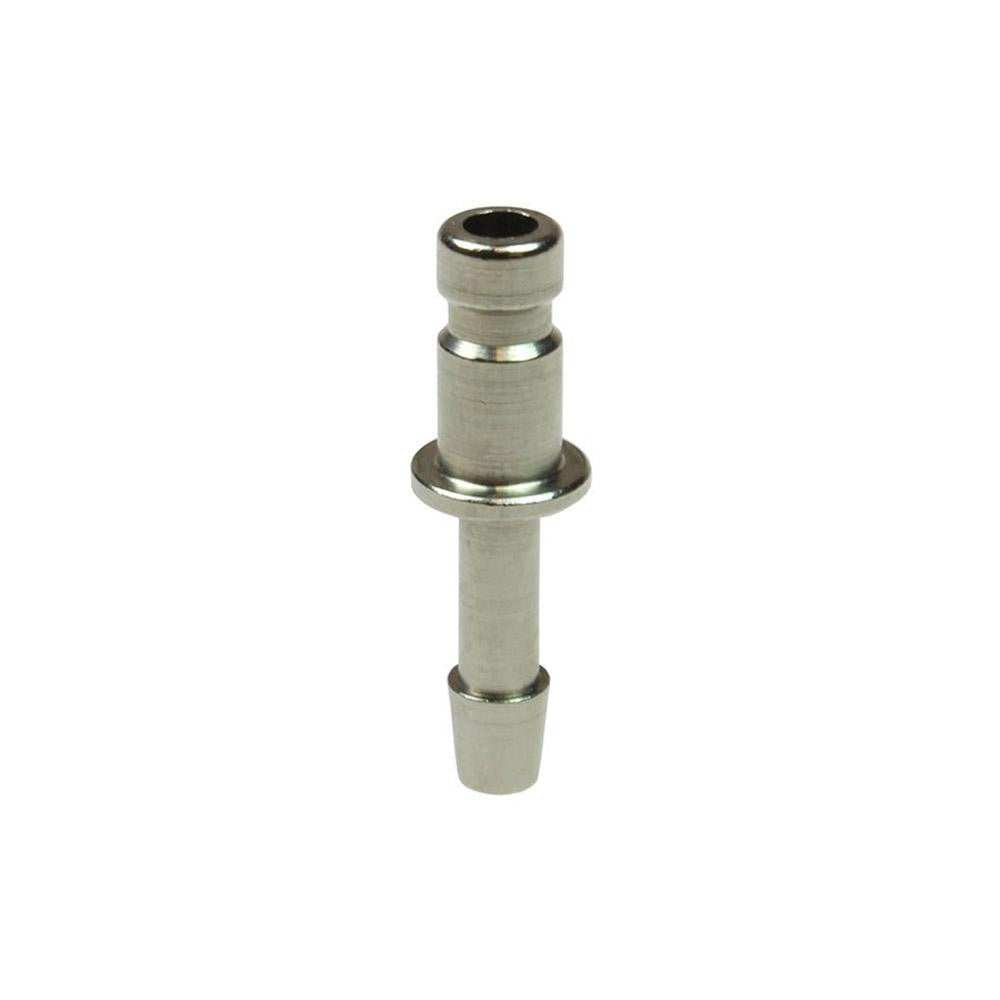

Coilhose Pneumatics 2002 Hose Coupling Rectus Type 20

Product Description

The COILHOSE PNEUMATICS 2002 is a brass pneumatic hose coupling connector designed for compressed air and pneumatic fluid transfer systems. It uses a Rectus Type 20 interchange configuration with a hose barb thread type, making it a direct-fit connector for pneumatic lines requiring a reliable mechanical coupling. The body diameter measures 7/64 inches with a 1/8 inch inside diameter hose bore. Rated to 500 psi maximum working pressure, this coupling handles the pressure demands of standard shop-air and industrial pneumatic circuits. A nickel finish provides added surface protection. HVAC technicians, plumbers, and industrial maintenance techs install this type of fitting when building or repairing pneumatic tool and control-line assemblies.

This connector is suited for residential and light commercial pneumatic applications where Rectus Type 20 interchange couplings are specified. The hose barb design locks onto compatible 1/8 inch inside diameter pneumatic hose without additional fittings or adapters. The compact brass body fits into tight panel or manifold mounting locations. It operates across a temperature range of 4 degrees F to 210 degrees F, covering typical shop and mechanical room environments. Pneumatic control systems for HVAC equipment, compressed-air tool lines, and low-volume fluid transfer circuits are common installation contexts.

Key Features

• Rectus Type 20 interchange for standardized coupling compatibility
• Brass construction with nickel finish for corrosion resistance
• Hose barb thread type fits 1/8 inch inside diameter pneumatic hose
• Rated to 500 psi maximum working pressure
• Operating temperature range of 4 degrees F to 210 degrees F
• Compact 7/64 inch body diameter for tight-space installations

Compatibility

Designed as an OEM-style replacement or add-on connector for pneumatic systems using Rectus Type 20 interchange couplings and 1/8 inch inside diameter hose.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic systems. Depressurize the pneumatic line fully before disconnecting or installing any coupling. Inspect the hose barb seat and hose end for cuts or deformation before assembly. Follow applicable compressed-air safety standards and local mechanical codes when integrating into pressurized systems.
