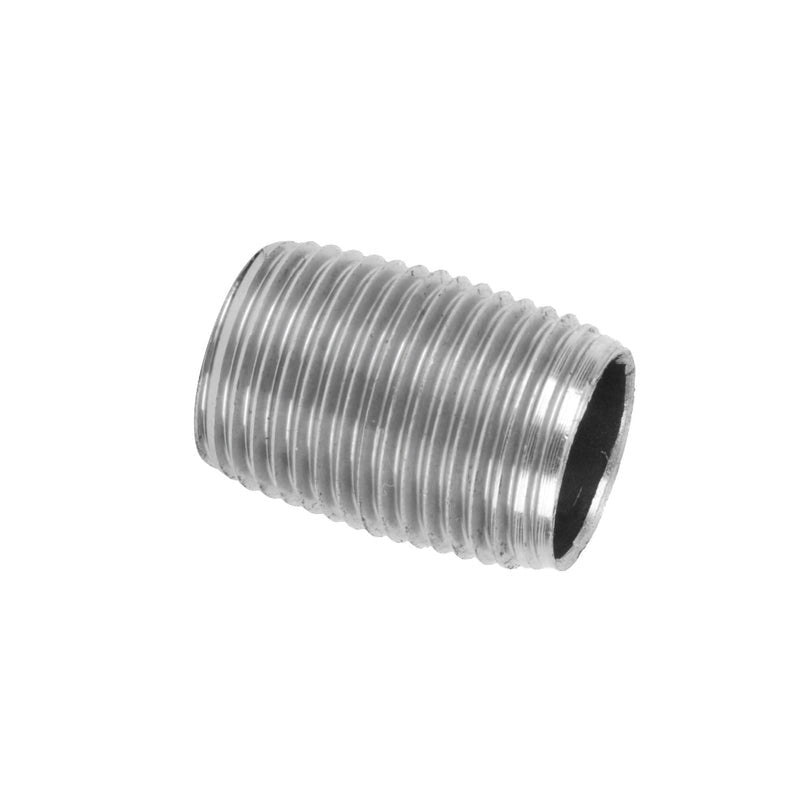

Coda Resources 507012 Galvanized Steel Close Nipple 1/2 in

Product Description

The CODA RESOURCES 507012 is a 1/2 inch close nipple machined from Schedule 40 galvanized steel and designed for threaded pipe assemblies in water, air, and general plumbing applications. The nipple is pre-cut and threaded end to end, with measurements taken thread to thread. Hot-dip zinc galvanizing provides corrosion resistance for both interior and exterior installations. The fitting is NSF 61 certified and lead-free, making it suitable for potable water systems. It meets ASTM and ASME standards and has been hydrostatically tested at the factory. Standard IPS threads allow connection to any compatible threaded fittings, valves, and pipe sections without modification.

This close nipple is used wherever a minimal-length threaded connection is required between two fittings, valves, or pipe sections. Typical applications include residential and light commercial water supply lines, compressed air distribution, and pipe decor assemblies. The 1/2 inch diameter is one of the most common sizes in residential plumbing rough-in and service work. Its Schedule 40 wall thickness meets code requirements for standard pressure service in water and air systems.

Key Features

• Schedule 40 wall thickness rated for standard water and air pressure service
• NSF 61 certified and lead-free for use in potable water systems
• Hot-dip zinc galvanizing for corrosion resistance in wet environments
• Hydrostatically tested and compliant with ASTM and ASME standards
• Standard IPS threads for compatibility with any threaded fittings or valves
• Pre-cut and threaded end to end — measurements are thread to thread

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with standard 1/2 inch IPS threaded pipe systems using Schedule 40 galvanized steel nipples in water, air, and pipe decor applications within applicable code.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code and applicable local codes. Shut off the water supply and depressurize the line before removing or installing any threaded fittings. Apply thread sealant tape or pipe dope to male threads before assembly. Do not overtighten threaded connections, as this can crack fittings or distort threads.

Technical Specifications

• Diameter: 1/2 inch
• Schedule: 40
• Width: 0.84 inches
• Height: 0.84 inches
• Length: 1.13 inches
• Material: Galvanized Steel
• Thread Type: Standard IPS
• Certifications: NSF 61, ASTM, ASME
• Lead-Free: Yes

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 507012
