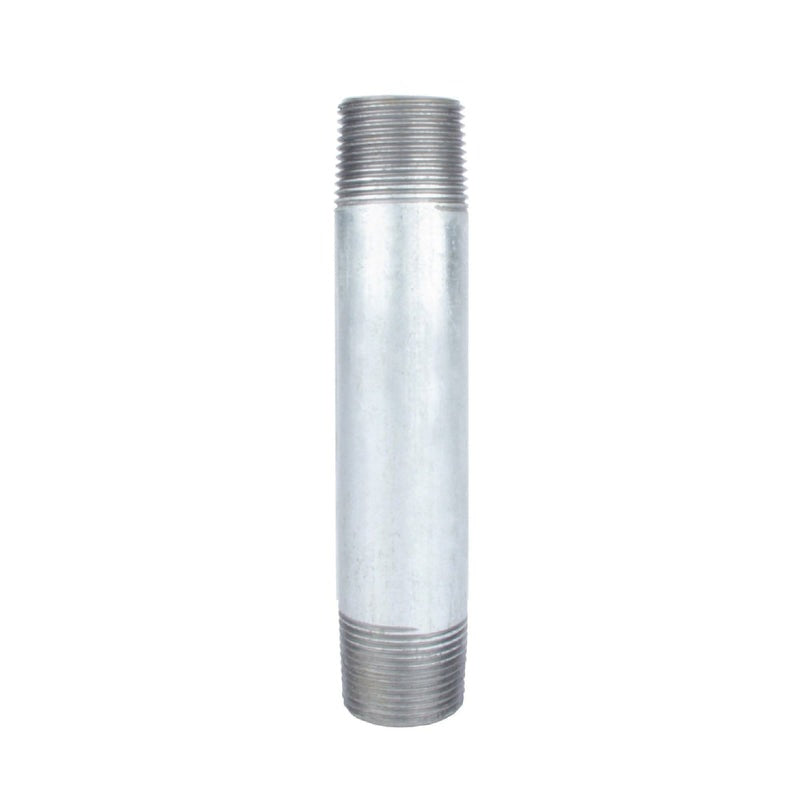

Coda Resources 507001 Galvanized Steel Nipple 1/2x3 in

Product Description

The CODA RESOURCES 507001 is a schedule 40 galvanized steel close nipple sized at 1/2 inch diameter by 3 inches in length, measured thread to thread. It is manufactured from hot-dip galvanized steel and carries NSF 61 certification, confirming lead-free construction suitable for potable water systems. Each nipple is hydrostatically tested and manufactured in compliance with ASTM and ASME standards. Standard IPS threads allow direct connection to compatible fittings, valves, and pipe assemblies. Licensed plumbers and pipefitters install this nipple in both residential and light commercial piping systems.

This nipple is suited for water distribution, compressed air lines, and decorative pipe applications where code-compliant galvanized steel construction is required. Its hot-dip zinc coating provides corrosion resistance for both interior and exterior environments. The standard IPS thread pattern ensures broad compatibility with threaded fittings across plumbing and industrial supply categories. It is also commonly used in pipe decor projects where an industrial steel aesthetic is desired.

Key Features

• Schedule 40 wall thickness for full-pressure service in water and air applications
• NSF 61 certified and lead-free — suitable for potable water contact
• Hot-dip galvanized zinc coating for corrosion resistance
• Hydrostatically tested per ASTM and ASME compliance requirements
• Standard IPS threads for compatibility with common threaded fittings and valves
• 3-inch thread-to-thread length for precise dimensional planning

Compatibility

Designed as a standard IPS-threaded replacement or new-installation nipple compatible with 1/2 inch threaded pipe fittings, valves, and couplings used in schedule 40 plumbing and air supply systems.

Installation Notes

Installation is performed by licensed plumbers or pipefitters in accordance with applicable IPC and local plumbing codes. Shut off and depressurize the supply line before cutting into any existing piping. Apply an approved thread sealant or PTFE tape to male threads before assembly. Do not over-torque threaded connections, as this can crack fittings or damage threads.

Technical Specifications

• Diameter: 1/2 inch
• Length (Thread to Thread): 3 inches
• Width: 0.84 inches
• Height: 0.84 inches
• Material: Galvanized Steel
• Schedule: 40
• Thread Type: Standard IPS
• Certifications: NSF 61, ASTM, ASME compliant
• Coating: Hot-dip galvanized zinc bath

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 507001
