Coda Resources 506829 Black Steel Nipple 1x2 Inch Sch 40

Product Description

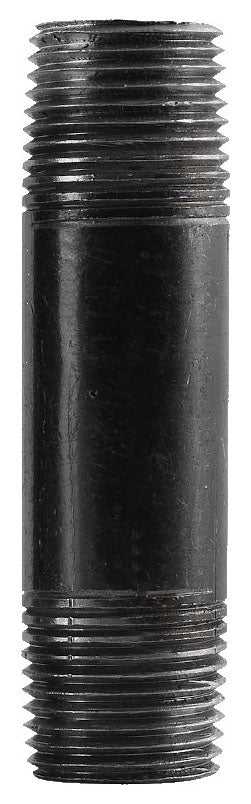

The CODA RESOURCES 506829 is a black steel close nipple fitting designed for threaded pipe assemblies in residential and light commercial gas and air distribution systems. Built to Schedule 40 wall thickness and conforming to ASTM A733 material specifications, this fitting measures 1 inch in nominal pipe size with an overall length of 2 inches. Both ends are male threaded for direct connection into female-threaded fittings, valves, or equipment ports. It carries a pressure rating of 226 psi at 400 degrees F, making it suitable for the elevated temperatures and pressures found in gas piping applications. Licensed plumbers and pipefitters are the primary installers of this component.

This nipple is used in residential and light commercial gas piping systems as well as compressed air distribution lines. Its black steel construction and ASTM A733 compliance make it a standard choice for natural gas and propane supply lines where galvanized fittings are not appropriate. The 1-inch diameter and 2-inch length suit branch connections, appliance stub-outs, and short offsets between threaded components in both new construction and retrofit work.

Key Features

• Schedule 40 wall thickness per ASTM A733 material specification
• 226 psi pressure rating at 400 degrees F for gas and air service
• Male threaded x male threaded end connections for standard NPT assembly
• Black steel finish appropriate for gas piping where galvanized coatings are prohibited
• 1-inch nominal diameter, 2-inch overall length for compact offset and stub-out installations

Compatibility

Designed for use in residential and light commercial gas and air piping systems requiring 1-inch Schedule 40 black steel threaded nipples conforming to ASTM A733.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with local codes and the International Fuel Gas Code (IFGC) for gas service applications. Shut off the gas supply and depressurize the line before threading or unthreading any fittings. Apply an approved pipe thread sealant or PTFE tape rated for gas service to the male threads before assembly. Do not overtighten threaded connections, as this can damage threads and compromise the seal.

Technical Specifications

• Nominal Pipe Size: 1 inch
• Overall Length: 2 inches
• Outer Diameter: 1.315 inches
• Schedule: 40
• End Connection: Male Threaded x Male Threaded
• Pressure Rating: 226 psi at 400 degrees F
• Material: Steel
• Material Specification: ASTM A733
• Finish: Black
• Application: Residential, Light Commercial Gas and Air

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506829
