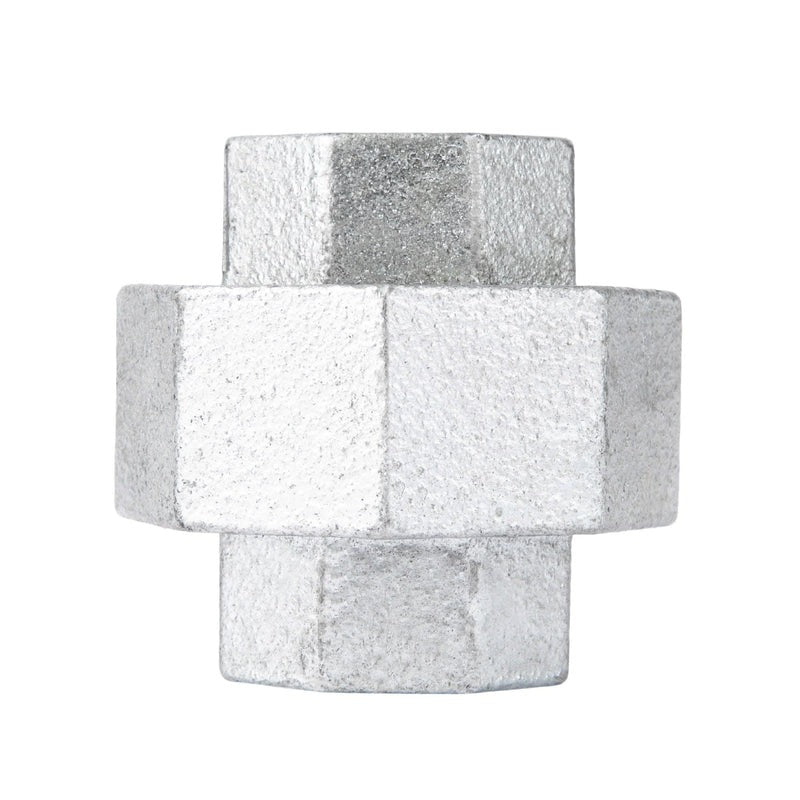

Coda Resources 506747 Galvanized Iron Union 3/4 Inch

Product Description

The CODA RESOURCES 506747 is a 3/4-inch galvanized malleable iron union designed for threaded pipe assemblies in plumbing, light industrial, and decorative pipe applications. This union fitting allows two sections of pipe to be connected or disconnected without rotating either pipe, which is essential when completing a closed loop or a rigid pipe run where end rotation is not possible. Constructed from malleable iron with a hot-dip galvanized finish, the fitting measures 2 inches wide by 1.87 inches tall and delivers the corrosion resistance expected of galvanized iron hardware.

This union is suited for 3/4-inch NPT threaded pipe systems in residential and light commercial settings. Listed uses include water service lines and decorative pipe furniture fabrication. The galvanized silver finish integrates cleanly with standard black or galvanized pipe systems. Plumbers, pipefitters, and experienced DIYers working on exposed-pipe furniture builds, workshop plumbing runs, or utility water lines will find this fitting useful where a standard coupling cannot complete the connection.

Key Features

• 3/4-inch diameter to match standard NPT threaded pipe
• Galvanized malleable iron construction for corrosion resistance and mechanical durability
• Union design allows pipe disconnection without rotating adjacent pipe sections
• Compact profile at 2 inches wide by 1.87 inches tall fits in tight assemblies
• Suitable for water service and decorative pipe applications

Compatibility

Designed for use with 3/4-inch NPT threaded galvanized or black malleable iron pipe systems in water service and decorative pipe applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter when used in pressurized water service lines, in accordance with applicable IPC or local plumbing code requirements. Shut off and depressurize the supply line before disassembly or installation. Apply an appropriate thread sealant or PTFE tape to all male NPT threads before assembly. Do not overtighten the union nut, as malleable iron threads can be damaged by excessive torque.

Technical Specifications

• Pipe Diameter: 3/4 inches
• Width: 2 inches
• Height: 1.87 inches
• Material: Galvanized Malleable Iron
• Listed Uses: Water, Decor

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506747
