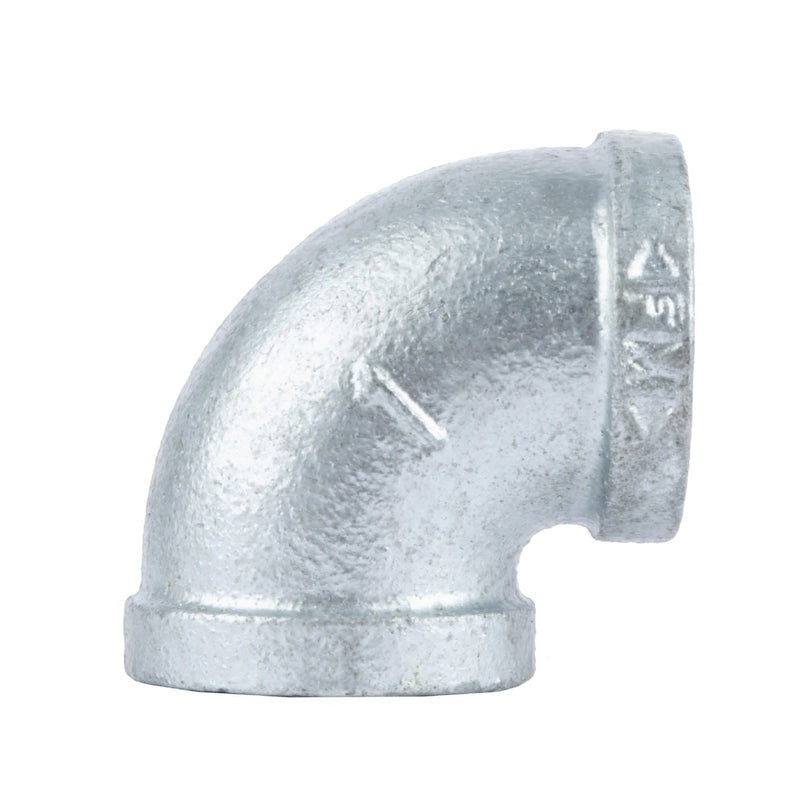

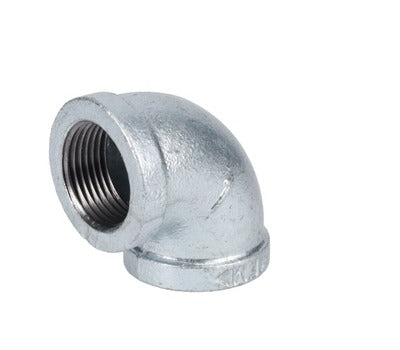

Coda Resources 506383 Galvanized Iron 90 Degree Elbow 1 in

Product Description

The CODA RESOURCES 506383 is a 1-inch galvanized malleable iron 90-degree elbow fitting designed for pipe assemblies requiring a right-angle directional change. Constructed from industrial-grade malleable iron with a galvanized finish, this elbow delivers corrosion resistance and structural durability in both functional and decorative applications. The silver-tone galvanized coating provides a clean, uniform appearance suited for exposed installations. Measuring 2.33 inches wide, 2.4 inches tall, and 1.79 inches in length, this fitting is a standard threaded elbow appropriate for plumbers, pipefitters, and skilled tradespeople working with iron pipe systems.

This elbow is suited for residential and light commercial pipe assemblies involving water supply lines as well as decorative pipe structure builds such as shelving, lighting fixtures, and custom furniture frameworks. The 1-inch nominal diameter fits standard iron pipe of the same nominal size. Its malleable iron construction allows it to handle the mechanical stress common in assembled pipe structures without cracking under load or vibration.

Key Features

• 90-degree elbow configuration for right-angle pipe routing
• 1-inch nominal diameter threaded connection
• Galvanized malleable iron construction for corrosion resistance
• Compact footprint: 2.33 inches wide, 2.4 inches tall, 1.79 inches in length
• Suitable for water and decorative pipe applications
• Industrial-grade material rated for structural pipe assemblies

Compatibility

Designed for use with standard 1-inch nominal iron pipe in threaded pipe assemblies for water service and decorative applications. Also identified by product ID FMGE90-1.

Installation Notes

Installation should be performed by a qualified plumber or pipefitter in accordance with applicable plumbing codes such as the IPC. Shut off water supply and depressurize the line before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to male threads before assembly. Do not overtighten threaded connections, as malleable iron fittings can crack if excessive torque is applied without proper technique.

Technical Specifications

• Diameter: 1 inch
• Width: 2.33 inches
• Height: 2.4 inches
• Length: 1.79 inches
• Material: Galvanized Malleable Iron
• Finish: Galvanized
• Angle: 90 Degrees
• Applications: Water, Decorative Pipe Structures

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506383
