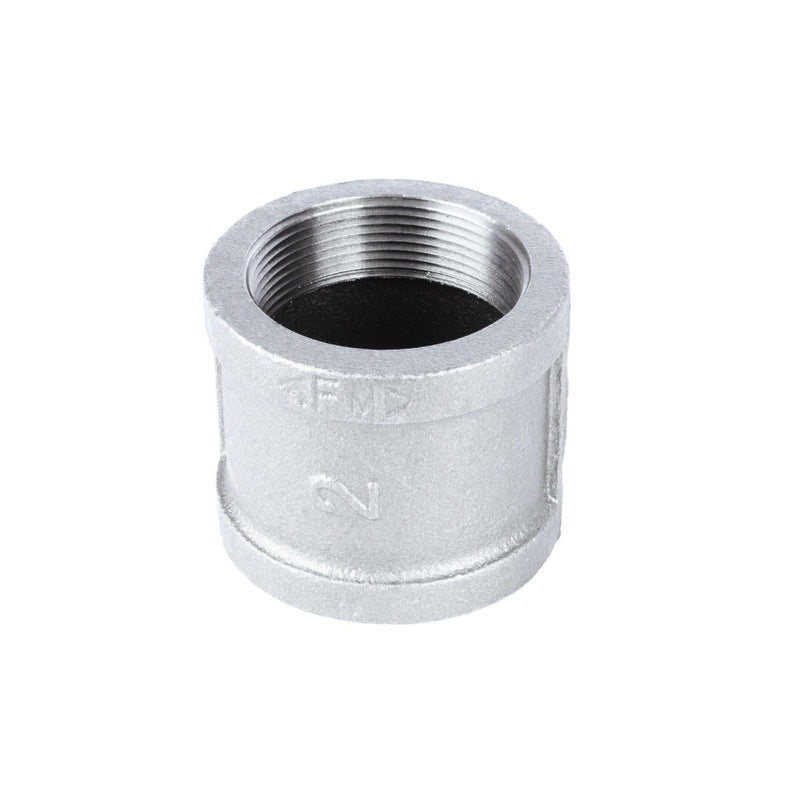

Coda Resources 506356 Galvanized Iron Pipe Coupling 2 in

Product Description

The CODA RESOURCES 506356 is a 2-inch galvanized malleable iron pipe coupling designed to join two pipe sections end to end. It allows tradespeople and fabricators to extend or connect pipe runs without welding or threading new stock. The fitting measures 2.96 inches wide by 2.62 inches tall and is constructed from industrial-grade malleable iron with a galvanized finish. The galvanized coating provides corrosion resistance and a clean silver appearance suited for both functional and decorative pipe assemblies. Licensed plumbers and pipefitters, as well as experienced DIYers working within local code requirements, commonly install this type of fitting in water supply and structural pipe applications.

This coupling is suited for residential and light commercial applications where 2-inch pipe sections need to be joined or extended. Typical uses include water piping and structural or decorative pipe framework such as shelving uprights, table legs, clothing racks, and similar fabricated assemblies. The malleable iron construction tolerates the mechanical stress common in threaded pipe systems. It is compatible with standard 2-inch threaded pipe fittings and pipe sections of matching nominal diameter.

Key Features

• 2-inch nominal diameter for use with standard 2-inch threaded pipe
• Galvanized malleable iron construction resists corrosion and wear
• Compact profile at 2.96 inches wide by 2.62 inches tall
• Suitable for water and decorative pipe applications
• Industrial-grade malleable iron withstands threaded assembly torque

Compatibility

Designed for use with standard 2-inch nominal threaded pipe in water supply and decorative pipe fabrication applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter when used in pressurized water supply systems, in accordance with applicable IPC requirements. Shut off water supply and relieve system pressure before removing or installing any threaded pipe fitting. Apply pipe thread sealant or PTFE tape to all threaded connections before assembly. Do not over-tighten threaded fittings, as malleable iron can crack under excessive torque.

Technical Specifications

• Nominal Pipe Diameter: 2 inches
• Width: 2.96 inches
• Height: 2.62 inches
• Material: Galvanized Malleable Iron
• Listed Applications: Water, Decor

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506356
