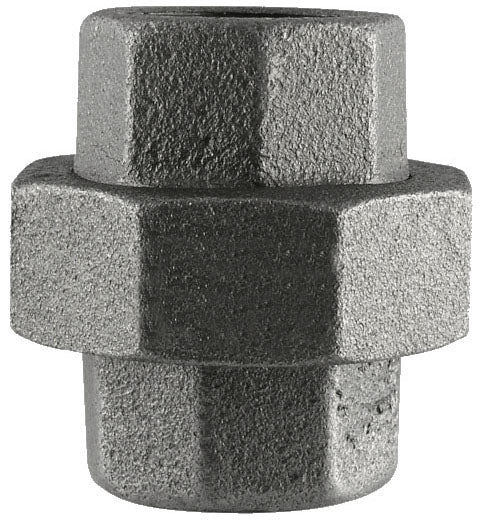

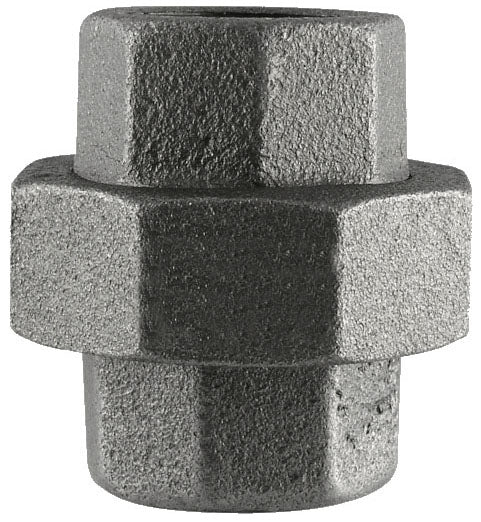

Coda Resources 506294 3/4 Inch Union Global (3/4 Inch) FMBU-34

Product Description

Coda Resources 506294 is a straight union fitting with female threaded connections designed for 3/4 inch pipe. It is manufactured from malleable iron to ASTM A197 specification, finished in black, and intended for residential gas, air, and LP applications. The fitting is pressure rated to 300 PSI at 150 F and 150 PSI at 300 F and is 100% pressure tested for integrity verification.

• Straight union with female threaded x female threaded ends for 3/4 inch connections
• Malleable iron construction to ASTM A197 with black finish; 100% pressure tested
• Pressure rated 300 PSI at 150 F and 150 PSI at 300 F; suitable for residential gas, air, and LP

Product Highlights

Malleable iron straight union, female threaded 3/4 inch ends, 300 PSI @150 F, ASTM A197

Product Information

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506294

Technical Specifications

• Part Number: 506294
• Additional Part Number: FMBU-34
• Manufacturer No: 506294
• Description: 3/4" Union Global (straight union fitting with female threaded connections for 3/4 inch pipe)
• End Connection: Female Threaded x Female Threaded
• Type: Straight
• Size A: 3/4 Inch
• Size B: 3/4 Inch
• Material: Malleable Iron
• Material Specification: ASTM A197
• Finish: Black
• Pressure Rating: 300 PSI at 150 F; 150 PSI at 300 F
• Application: Residential Gas, Air and LP
• Applicable Standard: ANSI/ASME B1.20.1; B16.3; B16.14; B16.39; UL; FM
• Features: 100% pressure tested
