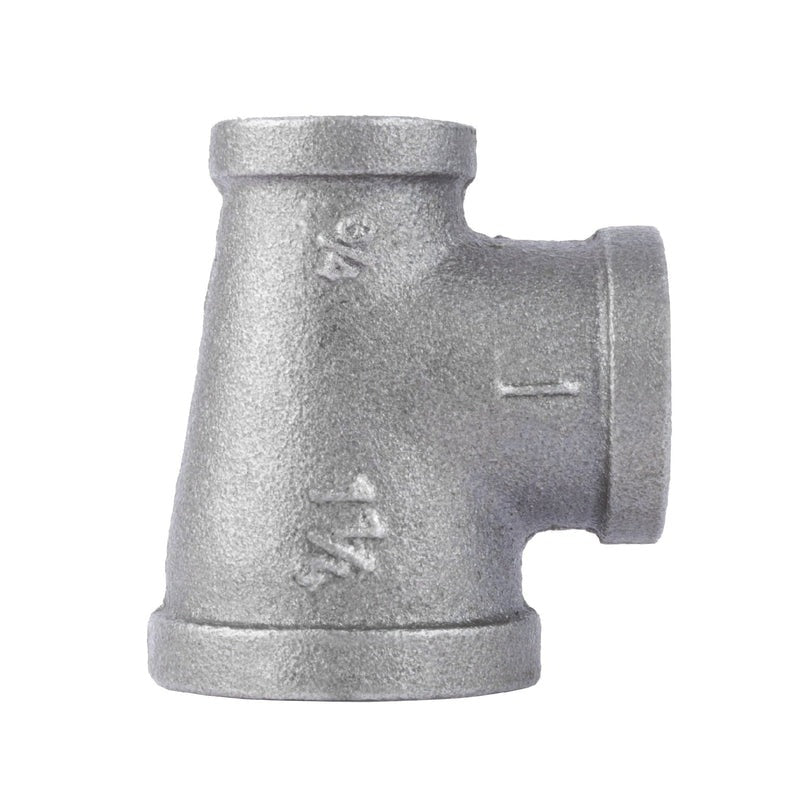

Coda Resources 506230 Black Malleable Iron Reducing Tee

Product Description

The CODA RESOURCES 506230 is a black malleable iron reducing tee designed for threaded pipe assemblies in gas, air, liquid propane, and decorative piping systems. This fitting connects three pipe runs of different diameters, allowing a main line to branch off at a reduced size. Measuring 3.1 inches wide by 2.8 inches tall, it accommodates a 1-1/4 inch run, a 3/4 inch outlet, and a 1 inch port. Malleable iron construction provides the strength and durability required for both functional utility installations and industrial-aesthetic interior pipe projects. Licensed plumbers, pipefitters, and experienced trade professionals are the typical installers.

This reducing tee is suited for residential and light commercial applications where a threaded iron pipe system changes diameter at a branch point. Common uses include gas distribution lines, compressed air distribution, liquid propane supply piping, and decorative exposed-pipe furniture or shelving builds. The three different port sizes give installers flexibility when transitioning between pipe diameters within a single run without adding additional couplings or adapters.

Key Features

• Black malleable iron construction for high strength and impact resistance
• Three-port reducing configuration: 1-1/4 inch, 3/4 inch, and 1 inch threaded connections
• Rated for use with gas, compressed air, liquid propane, and decorative piping
• Compact form factor at 3.1 inches wide by 2.8 inches tall
• Threaded ends for standard NPT pipe assembly

Compatibility

Designed as an OEM-style replacement and standard fitting for threaded black iron pipe systems using 1-1/4 inch, 3/4 inch, and 1 inch nominal pipe sizes.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter when used in gas or propane service, in accordance with applicable local codes and IFGC requirements. Shut off and depressurize the gas or air supply completely before disassembling or threading any fitting. Apply an appropriate thread sealant rated for the intended service medium to all male threads before assembly. Do not overtighten threaded connections, as malleable iron fittings can crack under excessive torque.

Technical Specifications

• Material: Black Malleable Iron
• Port Sizes: 1-1/4 inches, 3/4 inches, 1 inch
• Width: 3.1 inches
• Height: 2.8 inches
• Compatible Media: Gas, Air, Liquid Propane, Decorative

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 506230
