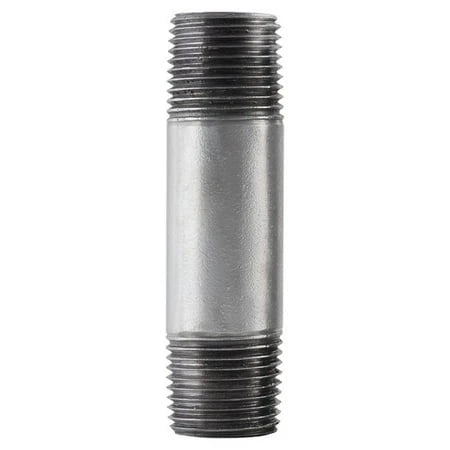

Coda Resources 500979 Galvanized Pipe Nipple 2 in x 4-1/2 in

Product Description

Coda Resources 500979 is a schedule 40 galvanized steel pipe nipple designed for residential and light commercial potable water applications. It is hydrostatically tested and rated to a maximum of 230 psi at 400°F. The galvanizing is applied by a hot-dip process in accordance with ASTM A153 and the product is certified to NSF 61 and compliant with lead-free regulations. It is UL and FM listed and not for underground use.

• Schedule 40 galvanized steel construction, hot-dip galvanized per ASTM A153
• Rated to 230 psi at 400°F and hydrostatically tested
• Certified to NSF 61, compliant with lead-free law; UL and FM listed

Product Highlights

Galvanized schedule 40 pipe nipple for potable water, 2 in x 4-1/2 in, MPN 500979; NSF 61 certified and hot-dip galvanized to ASTM A153.

Product Information

Standard Information

• Brand: CODA RESOURCES
• Manufacturer Part Number: 500979

Technical Specifications

• Brand: Coda Resources
• Manufacturer Part Number: 500979
• Model Number: 500979
• Manufacturer Name: CODA RESOURCES LTD
• SKU: 236346
• UPC: 019442152918
• Type: Pipe nipple
• Material: Galvanized steel
• Size: 2 in x 4-1/2 in
• Schedule: Schedule 40
• Pressure Rating: 230 psi (maximum)
• Temperature Rating: 400°F
• Galvanizing Process: Hot-dip galvanizing per ASTM A153
• Certifications: NSF 61; compliant with lead-free law
• Listings: UL listed; FM listed
• Application: Residential and light commercial potable water
• Weight: 0.9 lbs
• Package Dimensions: 2.25 in (W) x 4.5 in (L) x 2.25 in (H)
