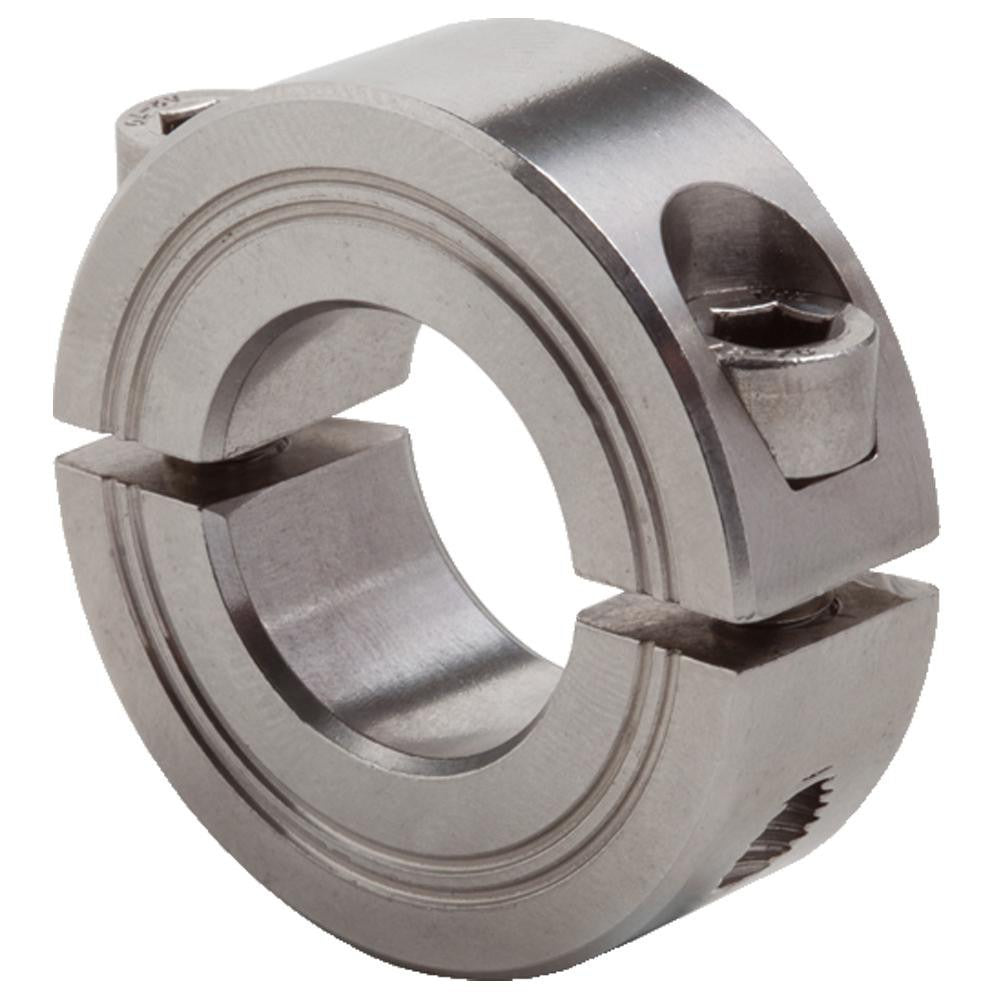

Climax Metal Products M2C-05-S Shaft Collar Clamp

Product Description

The CLIMAX METAL PRODUCTS M2C-05-S is a two-piece clamp-style shaft collar machined from stainless steel. Shaft collars are mechanical components used to locate, space, or retain components on a rotating or stationary shaft. The clamp design allows the collar to grip the shaft without set screws, distributing clamping force evenly around the shaft diameter to avoid surface damage. With an outside diameter of 0.6875 inches (11/16 inches), this collar is suited for precision shaft positioning in light-duty mechanical and industrial assemblies. At 0.025 pounds, it is a compact, lightweight component appropriate for close-tolerance applications.

This collar is intended for use in mechanical assemblies where accurate shaft positioning is required without marring the shaft surface. Typical applications include drive systems, conveyor assemblies, pump shafts, and industrial equipment where stainless steel construction is specified for corrosion resistance or sanitary requirements. Maintenance technicians and industrial mechanics install these collars during equipment assembly, rebuild, or component replacement procedures.

Key Features

• Two-piece clamp design distributes clamping load evenly without set-screw shaft damage
• Stainless steel construction offers corrosion resistance for wet, sanitary, or outdoor environments
• 11/16 inch (0.6875 inch) outside diameter for compatibility with close-tolerance shaft applications
• Lightweight at 0.025 pounds for use in compact or weight-sensitive assemblies
• Clamp-style retention allows repositioning on the shaft without permanent marking

Compatibility

Designed as a clamp-style shaft collar for mechanical assemblies requiring a 11/16 inch outside diameter stainless steel collar. Confirm shaft bore diameter and collar width against application requirements before installation.

Installation Notes

Shaft collars of this type are installed by licensed or qualified industrial mechanics and equipment technicians. De-energize and lock out all power to rotating machinery before installing or adjusting shaft collars, following applicable LOTO procedures. Ensure the shaft surface is clean and free of burrs before positioning the collar. Tighten fasteners evenly on two-piece clamp collars to achieve uniform clamping force across the shaft.
