Climax Metal Products M1C-08 Clamp Shaft Collar 1 in Od

Product Description

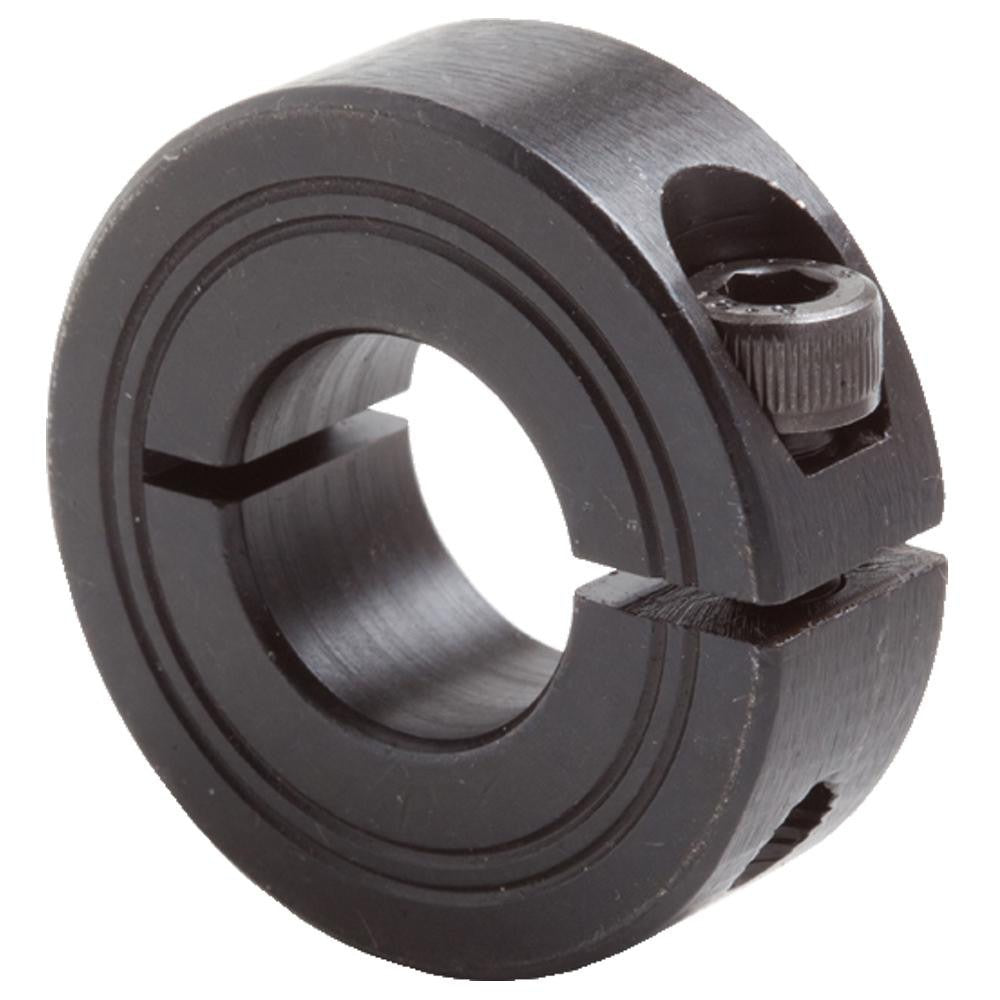

The CLIMAX METAL PRODUCTS M1C-08 is a one-piece clamp-style shaft collar machined from steel with a black oxide finish. It features a plain bore with a 0.315 inch bore diameter and a 1 inch outside diameter. Shaft collars of this type are used to locate, space, or retain components on a rotating or stationary shaft. The clamp design allows secure installation without set screws, eliminating the risk of shaft marring that is common with set-screw collars. This collar is part of the M1C series and is manufactured to ISO 9001:2008 quality standards. Installation is handled by mechanical and maintenance technicians across a wide range of industrial and mechanical applications.

This clamp collar is suited for use in light to medium-duty mechanical assemblies where precise shaft positioning is required. Typical applications include motor shafts, conveyor systems, pump assemblies, and general power transmission setups. The black oxide finish provides mild corrosion resistance in controlled environments. The plain bore accepts a shaft with an approximate diameter of 0.315 inches, making it appropriate for small-diameter shaft work in both OEM builds and field service repairs.

Key Features

• One-piece clamp design secures to shaft without set screws, reducing shaft damage risk
• Plain bore at 0.315 inch diameter for consistent, repeatable shaft fit
• 1 inch outside diameter for compact, low-profile installation
• Steel construction with black oxide finish for durability in controlled environments
• Manufactured under ISO 9001:2008 quality management standards

Compatibility

Designed as an OEM-style replacement or service component for mechanical assemblies requiring a clamp-style shaft collar with a 0.315 inch plain bore and 1 inch outside diameter.

Installation Notes

Installation is typically performed by a mechanical technician or millwright. Before installation, de-energize all rotating equipment and follow applicable lockout/tagout procedures per OSHA standards. Slide the collar onto the shaft to the desired position and tighten the clamp hardware evenly. Do not exceed the torque specifications provided in the manufacturer documentation for this series.
