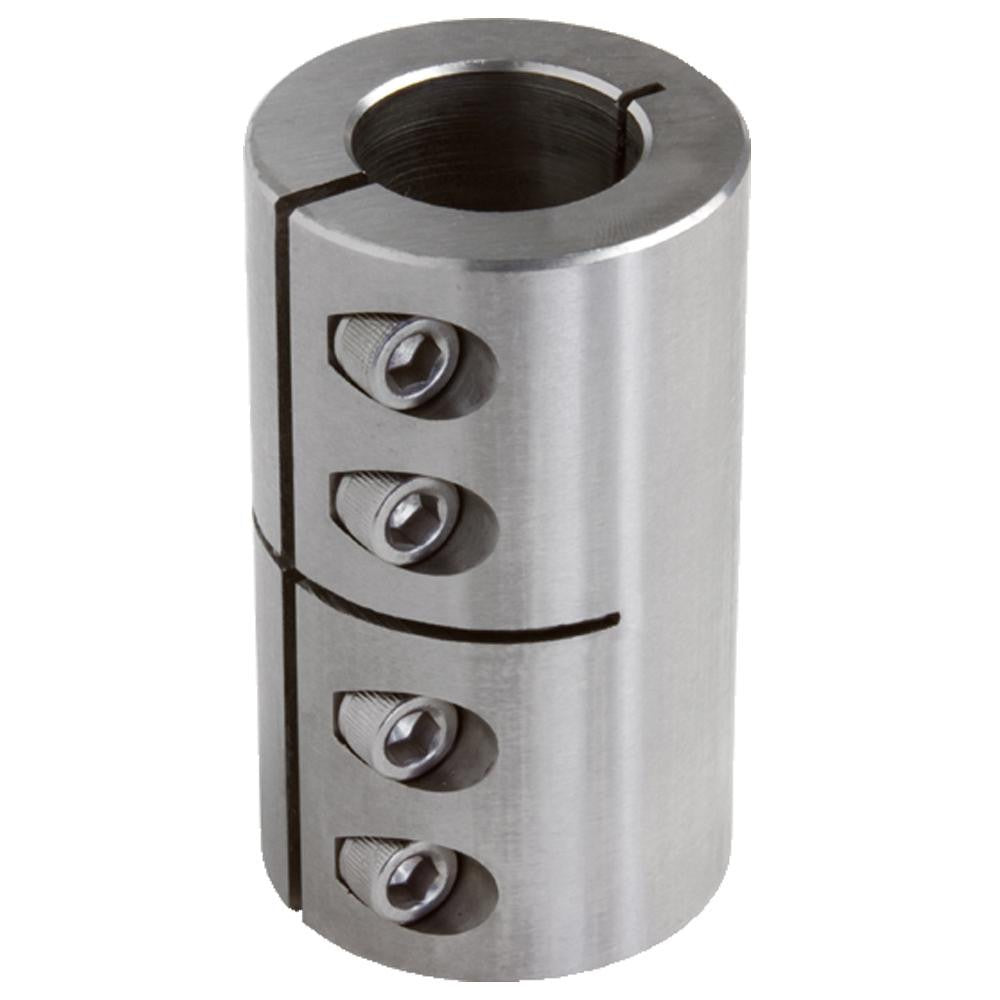

Climax Metal Products ISCC-137-100-S Split Clamping Collar

Product Description

The CLIMAX METAL PRODUCTS ISCC-137-100-S is a one-piece split clamping collar designed to secure shafts, rods, and cylindrical components in mechanical and industrial assemblies. Built from stainless steel, it offers corrosion resistance in wet, chemical, or outdoor environments. The split design allows the collar to be installed or removed without disassembling adjacent components, saving time during maintenance and positioning tasks. With a 1-3/8 inch bore and 2-1/4 inch outside diameter, it fits standard shaft sizes common in light industrial, HVAC, and mechanical drive applications. Machinists, millwrights, and mechanical contractors are the typical installers.

This collar is suited for use on rotating or stationary shafts in a wide range of equipment including fans, blowers, conveyors, and pump assemblies. The stainless steel construction makes it appropriate for installations where mild exposure to moisture or corrosive agents is a concern. Its 3-1/2 inch length provides extended clamping surface compared to standard-width collars, offering improved holding stability along the shaft axis. It is used in both light commercial and industrial mechanical installations.

Key Features

• One-piece split design allows installation and removal without full shaft disassembly
• 1-3/8 inch bore fits standard shaft diameters
• 2-1/4 inch outside diameter for use in standard mechanical assemblies
• 3-1/2 inch length provides extended clamping surface for improved axial stability
• Stainless steel construction resists corrosion in wet or chemically exposed environments

Compatibility

Designed as an OEM-style replacement or new-installation collar for mechanical shaft assemblies requiring a 1-3/8 inch bore one-piece split clamping collar.

Installation Notes

Installation is typically performed by millwrights or mechanical contractors using standard hand tools and a torque wrench. Always de-energize and lock out the equipment before installing or adjusting shaft collars in accordance with applicable OSHA lockout/tagout procedures. Position the collar at the desired location on the shaft before tightening fasteners evenly to ensure uniform clamping force. Do not use the collar as a primary load-bearing thrust component unless the application is specifically designed for that purpose.
