Climax Metal Products Dk-large 102 Steel Drill Stop Set

Product Description

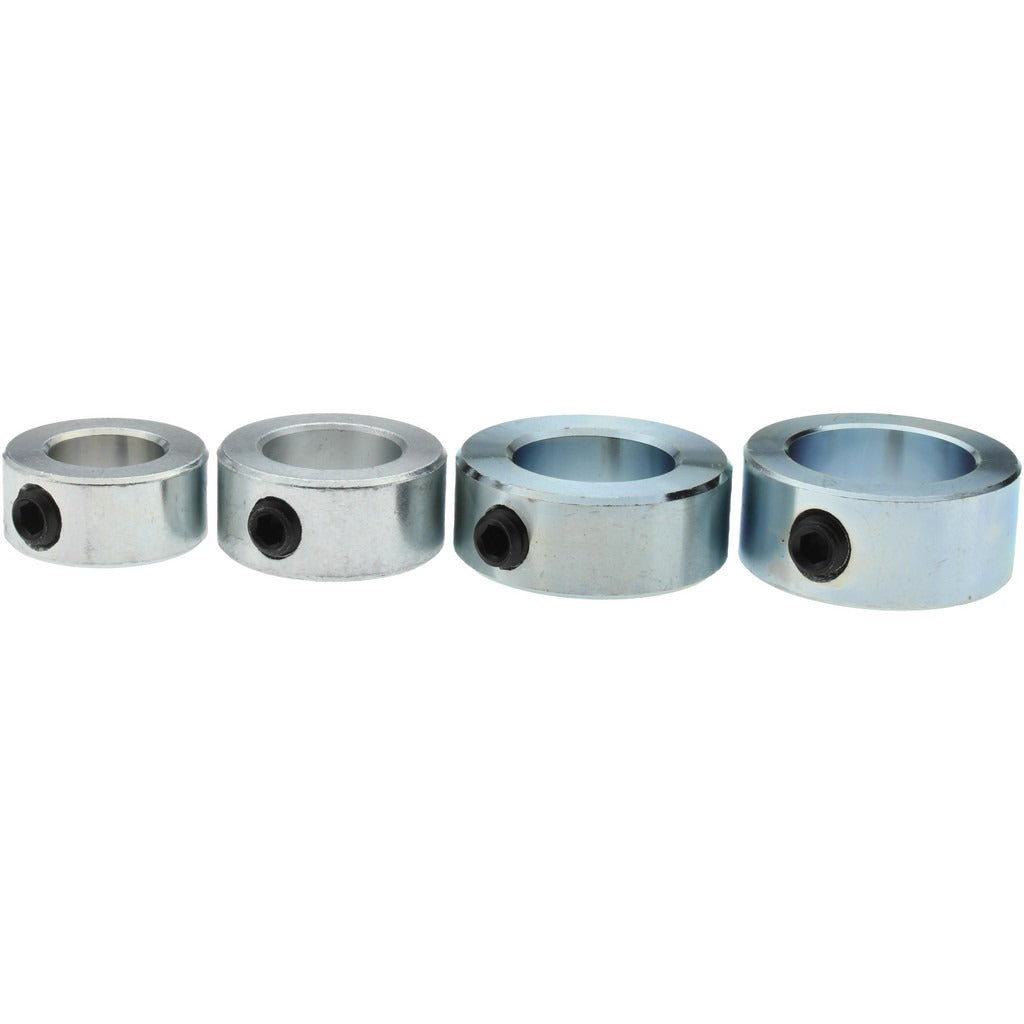

The CLIMAX METAL PRODUCTS DK-LARGE #102 is a four-piece steel drill stop set covering stop sizes from 5/8 inch through 1 inch. Drill stops, also called depth stops or drill collars, clamp onto drill bit shanks to limit drilling depth and produce consistent, repeatable hole depths across a workpiece. This set is suited for machinists, millwrights, pipefitters, and trade professionals who need reliable depth control when drilling into metal, wood, or composite materials. The steel construction provides the clamping strength needed to stay firmly positioned under production drilling conditions.

This set covers four discrete stop sizes: 5/8 inch, 3/4 inch, 7/8 inch, and 1 inch. It is appropriate for use in light fabrication shops, mechanical rooms, and field service work where multiple bit diameters are in regular rotation. The compact set weighs 0.5625 pounds, making it practical to keep in a tool bag or service truck without adding meaningful bulk.

Key Features

• Four stop sizes included: 5/8 inch, 3/4 inch, 7/8 inch, and 1 inch
• Steel construction for durable clamping grip on drill bit shanks
• Lightweight set at 0.5625 pounds total
• Consistent depth control for repetitive drilling operations
• Compact set format reduces the need for individual stop purchases across common large-bit sizes

Compatibility

Designed for use with drill bits in the 5/8 inch to 1 inch shank size range. Suitable for handheld drills, drill presses, and milling operations where depth stop control is required.

Installation Notes

Drill stops are installed by sliding the stop collar onto the drill bit shank and tightening the set screw to the desired depth position. Ensure the drill is fully powered off and secured before attaching or adjusting the stop. Use an appropriate hex key or Allen wrench to seat the set screw firmly so the stop does not shift under drilling force. Verify the stop position against a depth gauge or reference block before beginning production runs.
