Climax Metal Products CRC-075 Solid Set Screw Shaft Collar

Product Description

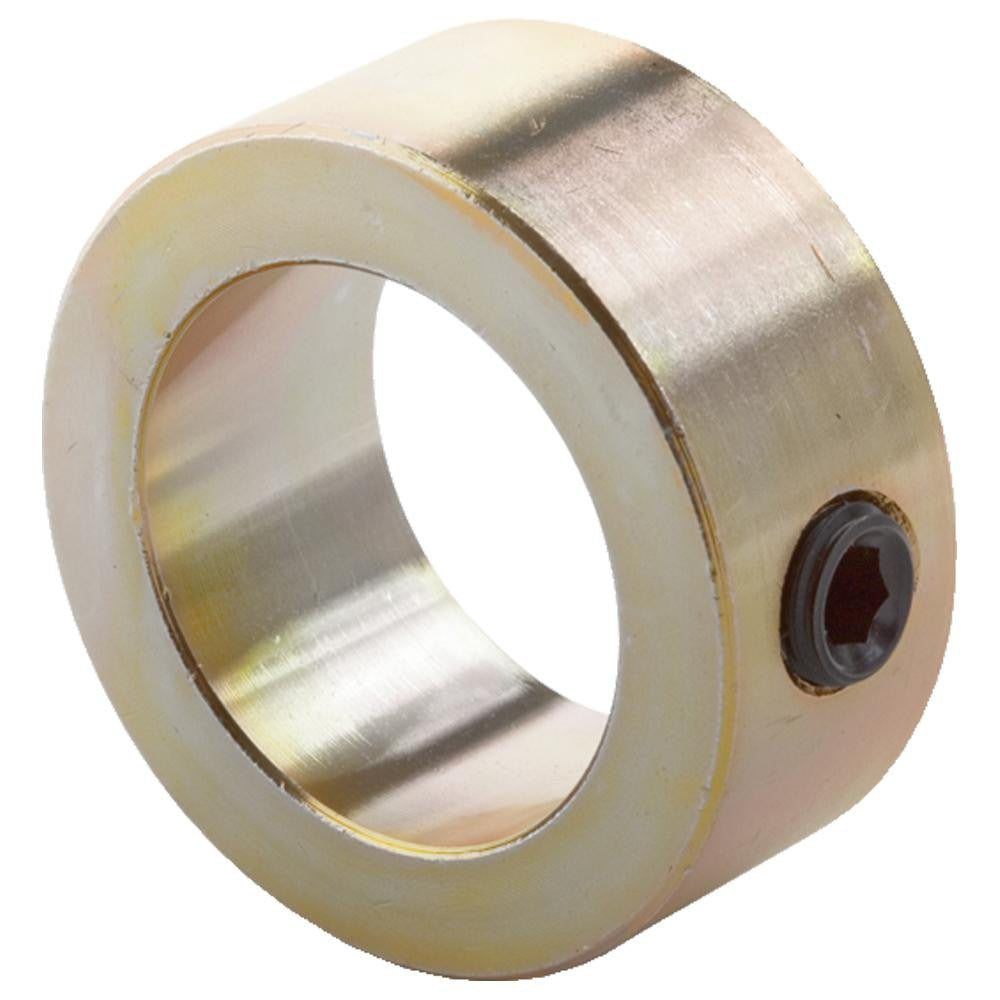

The CLIMAX METAL PRODUCTS CRC-075 is a solid set screw shaft collar designed to locate, space, and retain components on a rotating or stationary shaft. Machined from steel with a yellow zinc finish for corrosion resistance, this collar features a plain bore diameter of 0.75 inches and an outside diameter of 1.25 inches. Width measures 9/16 inches. The set screw design provides a straightforward clamping method suited to light-duty positioning applications. HVAC technicians, millwrights, and mechanical contractors commonly install shaft collars during motor, fan, and blower assembly work.

This collar is suited for use in residential and commercial mechanical systems where shaft retention or component spacing is required. Typical applications include fan shaft assemblies, blower wheels, pump shafts, and conveyor systems. The compact profile and steel construction make it appropriate for both new installations and replacement service on equipment where the original collar has worn or failed.

Key Features

• Solid one-piece construction for consistent shaft contact and positional holding
• Set screw drive style allows quick installation and repositioning without special tooling
• Plain bore at 0.75 inches fits standard fractional shaft sizes
• Yellow zinc finish provides light corrosion protection in typical indoor mechanical environments
• Manufactured under ISO 9001:2008 quality standards
• Compact width of 9/16 inches minimizes space requirements in tight assemblies

Compatibility

Designed as an OEM-style replacement or new-installation shaft collar for mechanical assemblies requiring a 0.75 inch plain bore solid set screw collar with a 1.25 inch outside diameter.

Installation Notes

Installation is typically performed by a licensed mechanic or HVAC technician. De-energize and lock out the equipment before working on any shaft assembly. Ensure the shaft surface is clean and free of burrs before positioning the collar. Tighten the set screw using the appropriate hex key to secure the collar at the desired location along the shaft.
