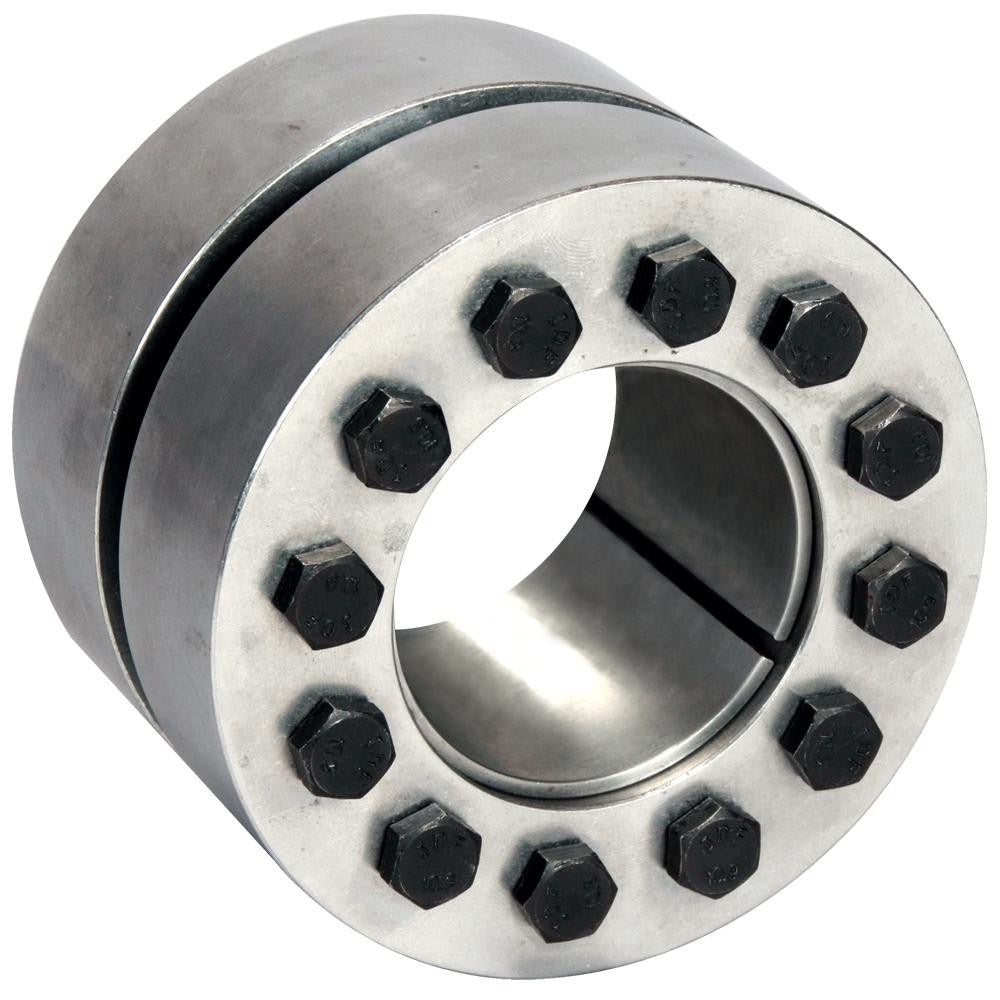

Climax Metal Products C600E-112 Shaft Locking Device

Product Description

The CLIMAX METAL PRODUCTS C600E-112 is a shaft locking device designed to secure rotating shafts and hubs in mechanical power transmission applications. With a 1-1/8 inch bore diameter and 66mm outer diameter, this collar-style locking device uses 7 M6 screws to generate clamping force without requiring keyways or other shaft modifications. It supports an axial load capacity of 14,955 pounds and a maximum torque rating of 701 foot-pounds, making it suitable for moderate-to-heavy duty drive and positioning applications. The overall width measures 2.598 inches, with a thrust ring width of 1.496 inches. Installation is performed by maintenance and industrial mechanics.

This shaft locking device is used where reliable, concentric shaft-to-hub connections are required without permanently modifying the shaft. Common applications include conveyor drives, gearbox couplings, fan hubs, and other rotating equipment found in industrial and commercial mechanical systems. The keyless clamping design allows for repeatable positioning and straightforward disassembly, which is practical for equipment that requires periodic repositioning or maintenance access.

Key Features

• 1-1/8 inch bore diameter for direct shaft mounting without keyway modification
• 66mm outer diameter with a compact 2.598 inch overall width
• 7 M6 thread screws provide uniform clamping force distribution
• Axial load capacity of 14,955 pounds for heavy duty holding strength
• Maximum torque rating of 701 foot-pounds
• Thrust ring width of 1.496 inches for defined contact area

Compatibility

Designed as an OEM-style replacement or direct-fit locking device for 1-1/8 inch diameter shafts in industrial mechanical power transmission assemblies.

Installation Notes

Installation is typically performed by qualified mechanical or millwright trades. Shut down and lock out all power to rotating equipment before installing or removing shaft locking devices, following LOTO procedures per OSHA 29 CFR 1910.147. Ensure shaft and bore surfaces are clean and free of oil or debris before assembly. Tighten screws in a star pattern to achieve even clamping force, and verify shaft runout and alignment before returning equipment to service.
