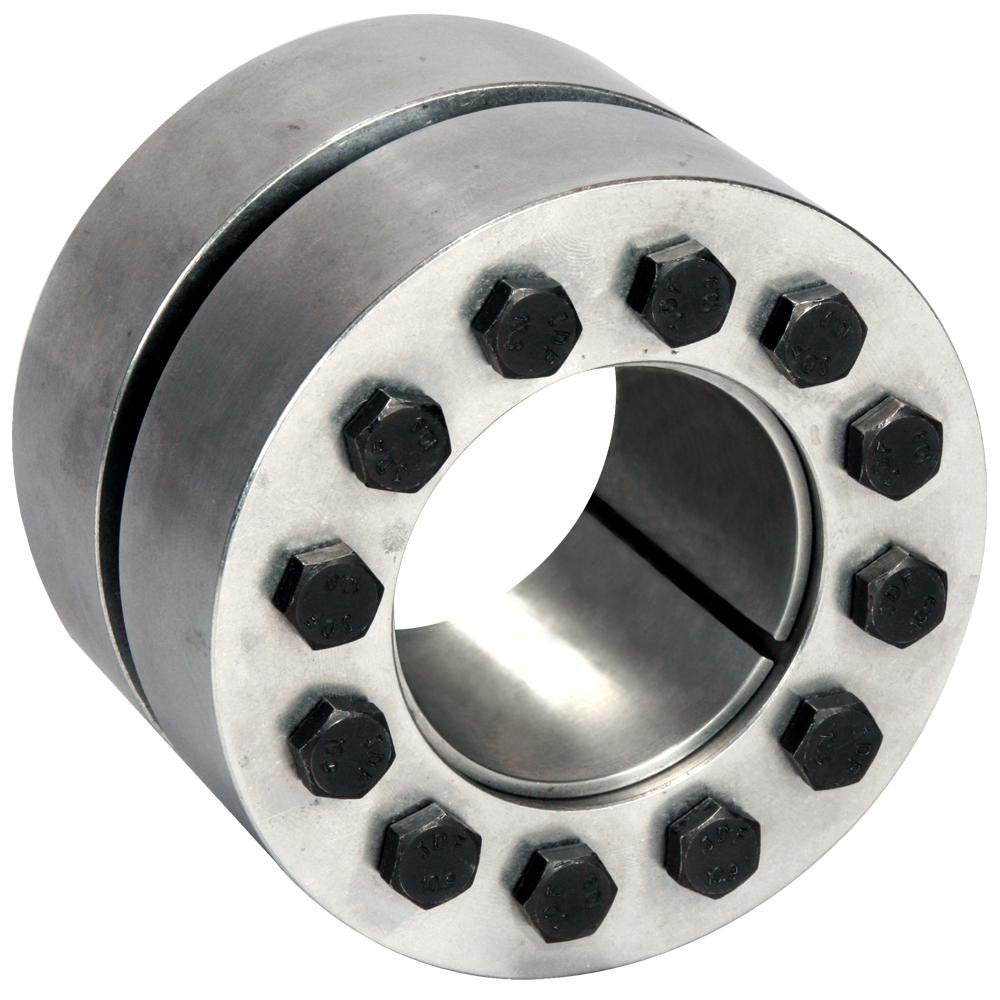

Climax Metal Products C600E-068 Shaft Locking Device

Product Description

The CLIMAX METAL PRODUCTS C600E-068 is a shaft locking device designed to secure rotating shafts in industrial mechanical assemblies. It features an 11/16 inch bore diameter and a 52mm outer diameter, with M6 thread screws providing the clamping force. Three screws generate a maximum axial load of 6,423 pounds and a maximum torque rating of 184 ft/lb. The overall width measures 2.047 inches, and the thrust ring width is 1.181 inches. This device is installed by millwrights, maintenance technicians, and mechanical assemblers working on rotating equipment applications.

The C600E-068 shaft locking device is suited for use in industrial drive systems, conveyor assemblies, and rotating shaft applications where a secure, screw-actuated shaft lock is required. Its compact OD of 52mm makes it practical in space-constrained housings. The three-screw design distributes clamping load evenly around the shaft for consistent holding performance across both light and moderate duty applications.

Key Features

• 11/16 inch bore diameter accommodates common shaft sizes in industrial drive assemblies
• 52mm outer diameter fits space-constrained housings and flanges
• Three M6 thread screws deliver up to 6,423 lb axial load capacity
• Maximum torque rating of 184 ft/lb provides reliable shaft retention under load
• Overall width of 2.047 inches with a thrust ring width of 1.181 inches for precise axial positioning

Compatibility

Designed as a standard shaft locking device for industrial rotating equipment applications requiring an 11/16 inch bore, 52mm OD, and M6 thread screw engagement.

Installation Notes

Installation is performed by qualified millwrights or mechanical technicians. De-energize and lock out all power to the equipment before installing or removing the shaft locking device, following applicable LOTO procedures. Use a calibrated torque wrench to tighten the M6 screws in an alternating pattern to achieve even clamping force distribution. Do not exceed the rated axial load or torque values specified for this device.
