Climax Metal Products C200E-118 Shaft Locking Device

Product Description

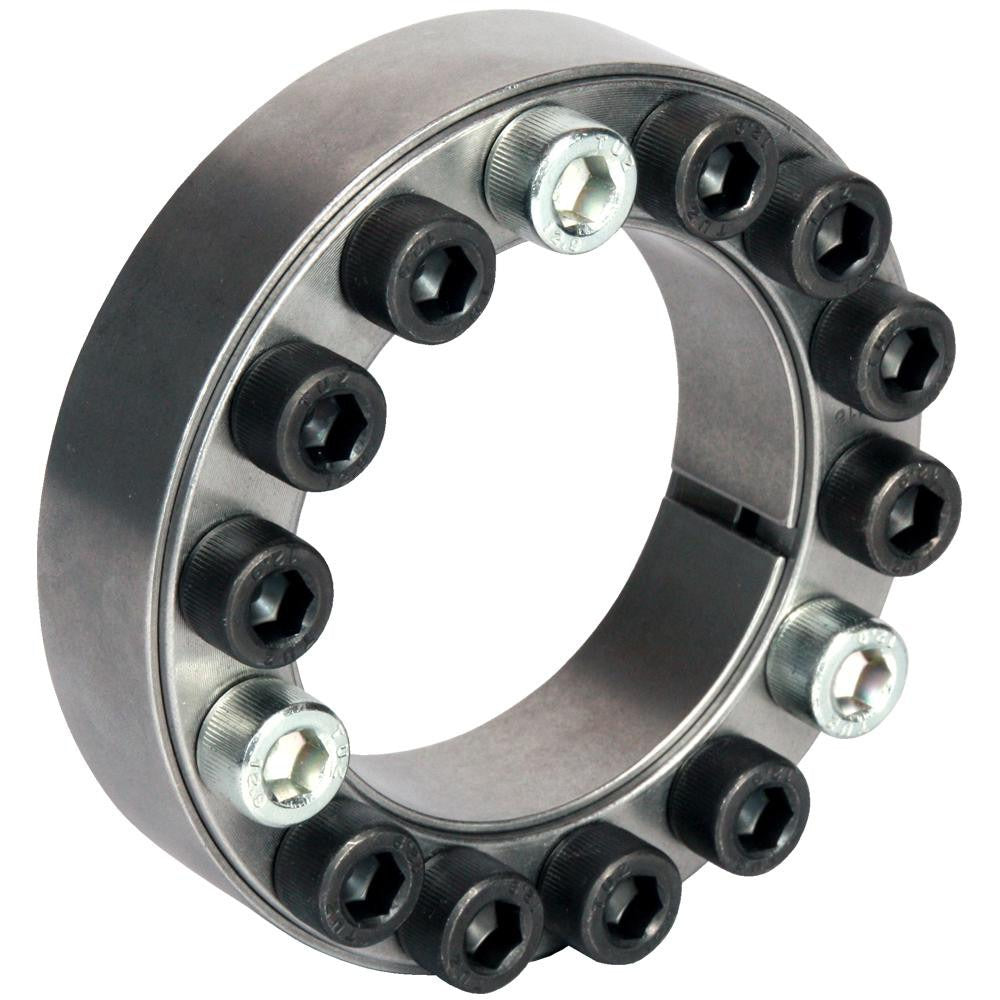

The CLIMAX METAL PRODUCTS C200E-118 is a shaft locking device designed to secure rotating shafts to hubs, collars, or mating components in mechanical power transmission systems. Part of the C200 series, it features a 1.188-inch bore diameter and a 2.159-inch outer diameter, with M6 thread screws. Ten screws provide clamping force that generates up to 441 ft/lb of maximum torque and supports an axial load capacity of 8,919 pounds. The thrust ring width measures 0.669 inches and the overall width matches the 2.159-inch OD profile. This device is installed by mechanical technicians and millwrights in industrial and commercial equipment applications.

The C200E-118 is suited for use in industrial machinery, conveyor systems, pump drives, gearboxes, and similar power transmission assemblies where a rigid, high-load shaft connection is required. The M6 threaded fasteners and ten-screw configuration distribute clamping load evenly around the shaft, making this device appropriate for both new installations and replacement applications on equipment using C200-series locking devices. It weighs 0.6 pounds and ships as a single unit.

Key Features

• 1.188-inch bore diameter accommodates standard shaft sizing for the C200 series
• 2.159-inch outer diameter with matching overall width for compact installation
• M6 thread screws with a 10-screw configuration for even clamping load distribution
• 8,919-pound axial load capacity for demanding power transmission applications
• 441 ft/lb maximum torque rating
• 0.669-inch thrust ring width for controlled axial positioning

Compatibility

Designed as an OEM-style replacement or new-installation shaft locking device for mechanical power transmission systems requiring a 1.188-inch bore, M6 thread, C200-series locking collar.

Installation Notes

Installation should be performed by a qualified millwright or mechanical technician. Ensure all connected equipment is fully de-energized and locked out before beginning work. Screw torque should be applied evenly in a cross pattern using the appropriate M6 hex key to achieve proper clamping force. Do not exceed the rated axial load or torque specifications for this device.
