Climax Metal Products C170E-112 Shaft Locking Device

Product Description

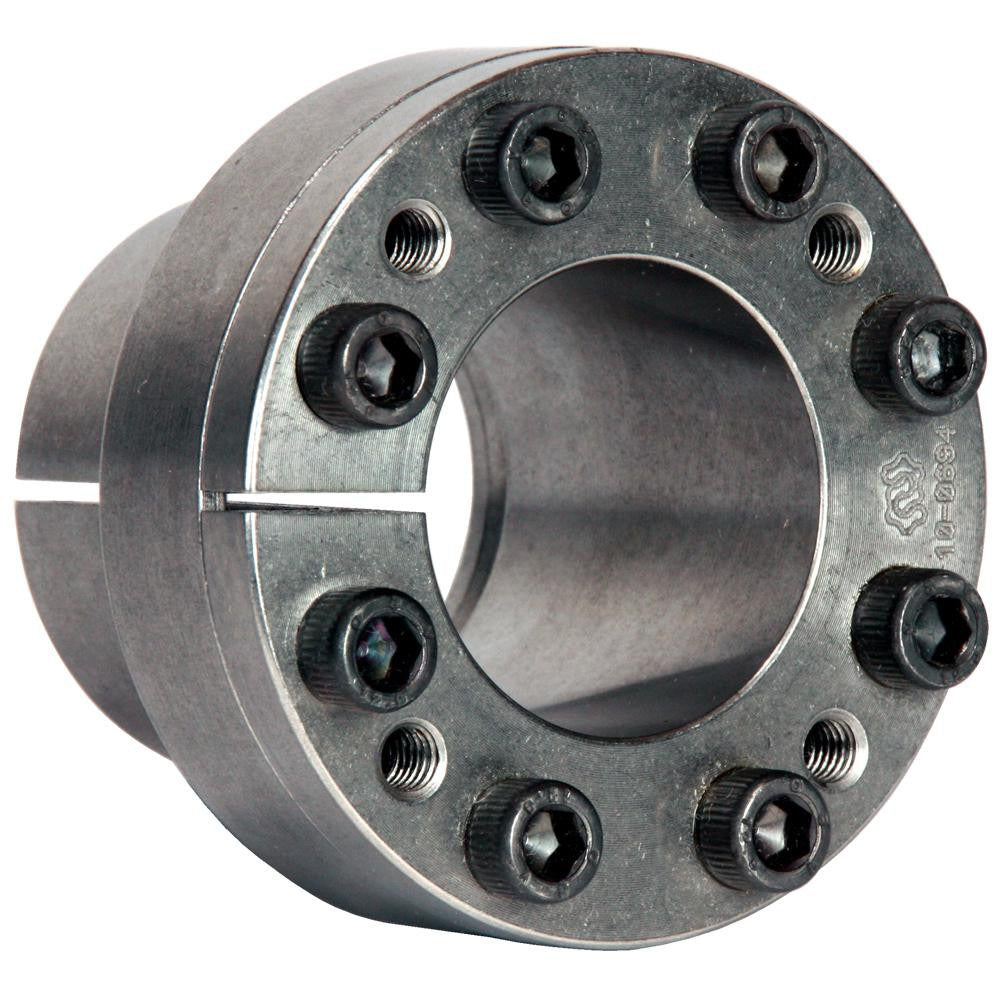

The CLIMAX METAL PRODUCTS C170E-112 is a shaft locking device engineered to secure rotating shafts against axial movement in demanding mechanical drive applications. With a 1-1/8 inch bore diameter and 1.535 inch outer diameter, this collar-style locking device handles up to 7,518 pounds of axial load and 352 ft/lb maximum torque. Six M6 threaded screws distribute clamping force evenly around the shaft, reducing stress concentration and improving holding reliability. Overall width measures 2.402 inches, with a thrust ring width of 0.984 inches. It is installed by licensed millwrights, mechanical technicians, and maintenance professionals working on motors, gearboxes, conveyors, and rotating shaft assemblies.

This shaft locking device is suited for industrial and commercial mechanical systems where positive shaft retention is required. Typical applications include conveyor drives, pump shafts, fan assemblies, and gearbox output shafts where axial load capacity and torque resistance are critical. The M6 thread pattern and six-screw configuration make it appropriate for medium-duty shaft diameters in the 1-1/8 inch range across a wide variety of rotating equipment.

Key Features

• 1-1/8 inch bore diameter for precise shaft fitment
• 1.535 inch outer diameter with 2.402 inch overall width
• Handles up to 7,518 pounds of axial load
• Maximum torque rating of 352 ft/lb
• Six M6 threaded screws for even clamping force distribution
• Thrust ring width of 0.984 inches for consistent axial positioning

Compatibility

Designed as a direct-fit shaft locking device for 1-1/8 inch diameter shafts requiring M6 thread screws and high axial load capacity in industrial rotating equipment applications.

Installation Notes

Installation should be performed by a qualified millwright or mechanical technician. De-energize and lock out the drive system completely before beginning shaft collar work. Tighten all six screws in a star pattern to ensure even clamping force across the shaft. Do not exceed the rated axial load or torque values specified for this device.
