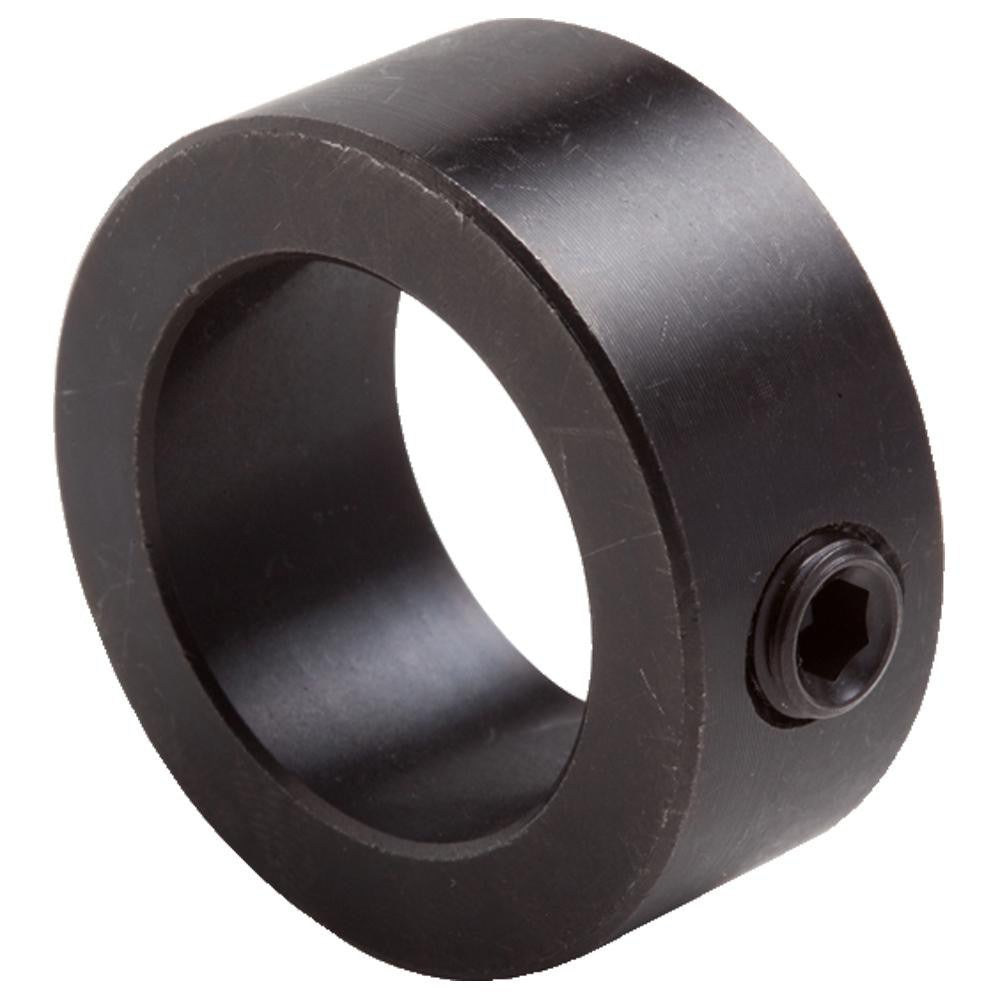

Climax Metal Products C-006-BO Shaft Collar Steel

Product Description

The CLIMAX METAL PRODUCTS C-006-BO is a set screw style shaft collar designed to locate, space, and retain components on rotating or stationary shafts. It features a plain bore diameter of 0.063 inches and a 0.25-inch outside diameter, making it suited for small-diameter shaft applications. Constructed from steel with a black oxide finish, this collar offers corrosion resistance and a clean appearance without adding significant bulk. At 0.01 pounds, it is lightweight but solid, fitting the Series C product line. Installation is typically performed by maintenance technicians and mechanical assemblers working on light machinery, conveyor systems, or motion control equipment.

This shaft collar is used in applications requiring precise axial positioning of components on small shafts. The set screw design locks the collar firmly in place once tightened, preventing unintended axial movement. The 0.188-inch width makes it suitable for tight-clearance assemblies where a compact profile is required. It is appropriate for use in residential HVAC equipment, light industrial machinery, and other mechanical systems where small-bore shaft collars are specified. Manufactured to ISO 9001:2008 standards, it meets quality requirements expected in commercial and industrial settings.

Key Features

• Set screw style for secure, tool-adjustable shaft locking
• Plain bore design with 0.063-inch bore diameter for small-shaft fitment
• 0.25-inch outside diameter and 0.188-inch width for compact, tight-clearance installations
• Steel construction with black oxide finish for corrosion resistance
• Manufactured to ISO 9001:2008 quality standards
• Lightweight at 0.01 pounds, suitable for weight-sensitive assemblies

Compatibility

Designed as an OEM-style replacement or direct-fit shaft collar for mechanical assemblies requiring a set screw collar with a 0.063-inch plain bore and 0.25-inch outside diameter.

Installation Notes

Installation is typically performed by a licensed mechanic or qualified maintenance technician. De-energize and lock out all power to the equipment before servicing any rotating components. Use the appropriate hex key or Allen wrench to tighten the set screw to secure the collar on the shaft. Avoid overtightening the set screw, as excessive force can damage the shaft surface or the collar threads.
