Climax Metal Products 2ISCC112-112SKW Rigid Coupling

Product Description

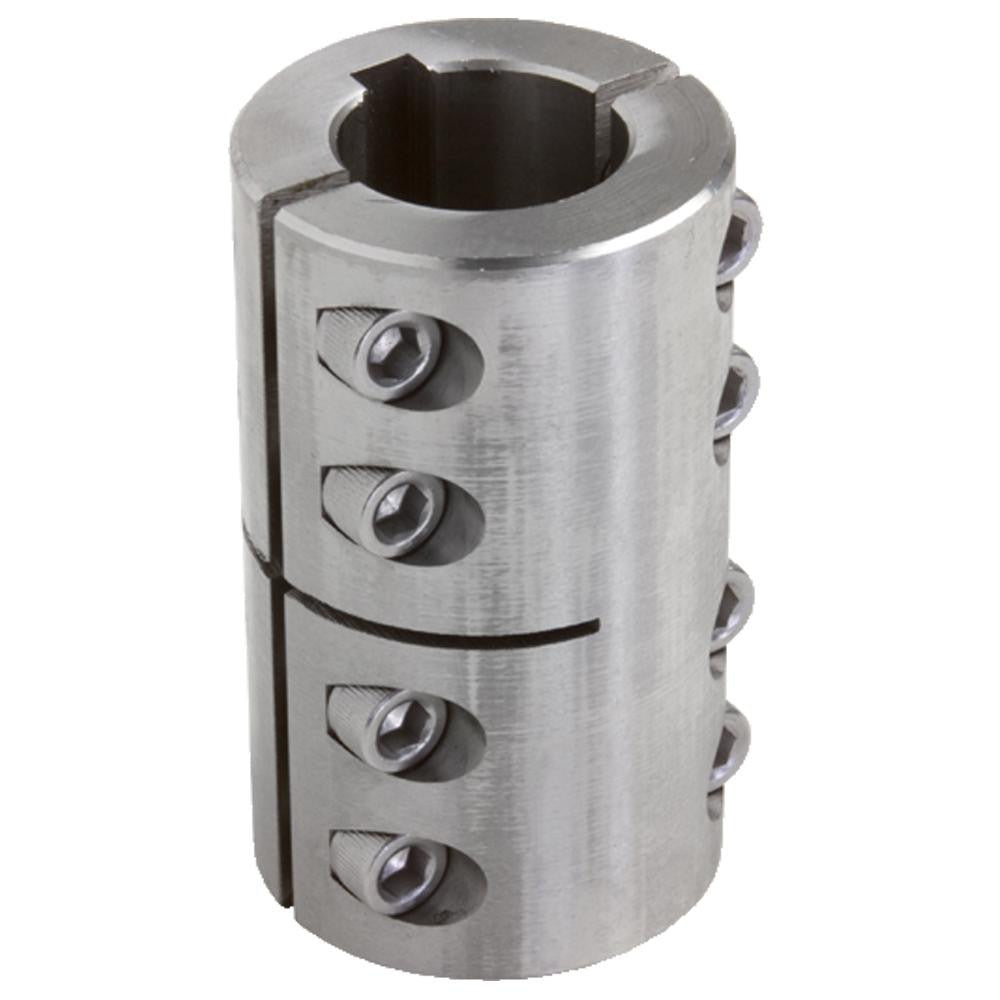

The CLIMAX METAL PRODUCTS 2ISCC112-112SKW is a two-piece rigid shaft coupling with a keyway, designed for use in mechanical power transmission applications where a solid, non-flexible connection between two shafts is required. Built from stainless steel, this coupling accepts a 1-1/8 inch bore and measures 1-7/8 inches in outside diameter and 3-1/8 inches in length. The integrated keyway - 1/4 inches wide by 1/8 inches deep - provides positive torque transfer and prevents shaft rotation relative to the coupling. This style of coupling is typically installed by millwrights, maintenance mechanics, and industrial technicians working on motors, pumps, conveyors, and similar rotating equipment.

This coupling is suited for industrial and commercial mechanical assemblies where shaft alignment is fixed and vibration isolation is not required. The two-piece construction allows installation and removal without disassembling adjacent components, making it a practical choice for maintenance-intensive equipment. Applications include motor-to-gearbox connections, drive shaft assemblies, and other power transmission setups requiring a rigid, keyed interface between shafts of equal diameter.

Key Features

• Two-piece design allows installation and removal without full shaft disassembly
• Keyway slot (1/4 inches wide x 1/8 inches deep) ensures positive torque transfer
• Stainless steel construction for corrosion resistance in demanding environments
• Rigid coupling style provides zero backlash and high torsional stiffness
• 1-1/8 inches bore accommodates standard shaft sizing

Compatibility

Designed as a rigid keyed shaft coupling for use with 1-1/8 inch diameter shafts in industrial power transmission assemblies requiring a two-piece, keyway-style connection.

Installation Notes

Installation should be performed by a qualified mechanic or millwright with the driven equipment fully de-energized and locked out per OSHA lockout/tagout procedures. Ensure shaft surfaces are clean and free of burrs before seating the coupling. Verify shaft and keyway dimensions match the coupling bore and keyway specifications before assembly. Torque fasteners evenly and confirm shaft alignment before returning equipment to service.
