Climax Metal Products 1C-062-A Clamp Shaft Collar

Product Description

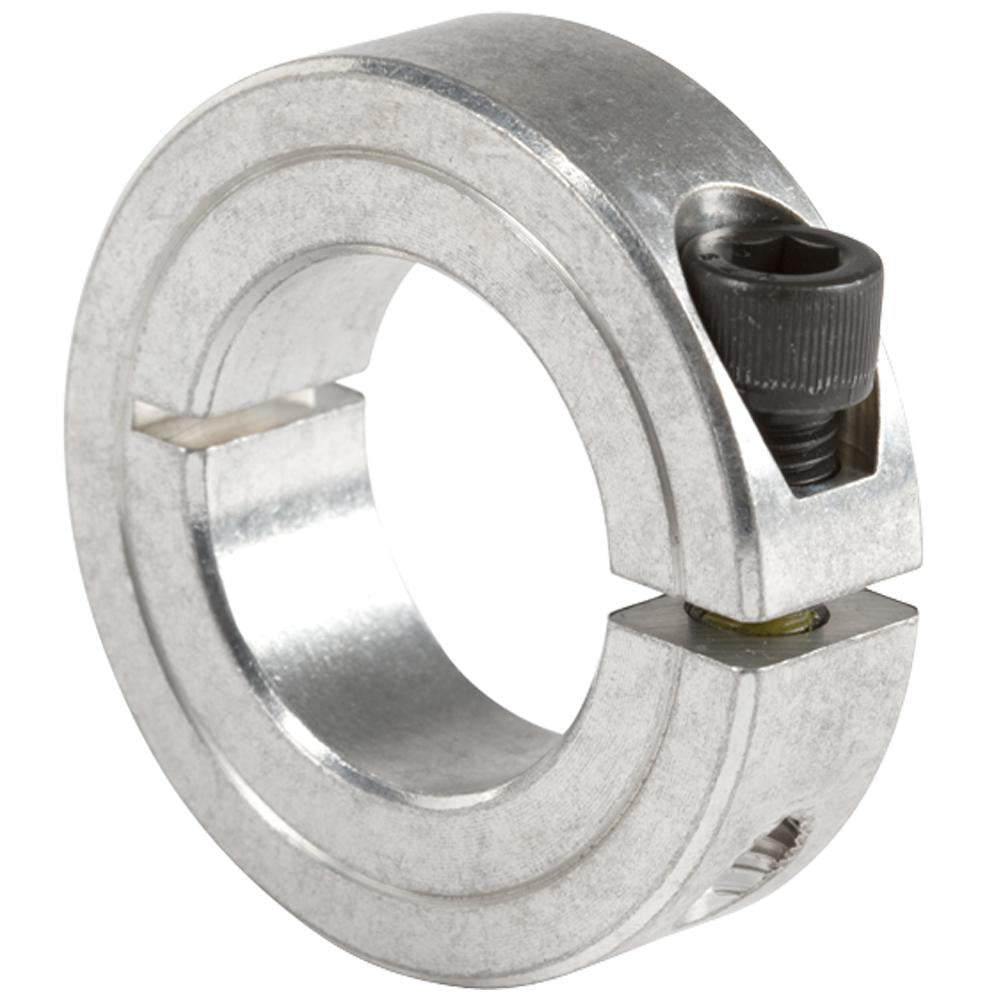

The CLIMAX METAL PRODUCTS 1C-062-A is a one-piece clamp-style shaft collar machined from 6061-T651 aluminum. It features a plain bore with a 0.625-inch bore diameter and a 1-5/16-inch outside diameter, making it a compact, lightweight solution for shaft positioning, spacing, and stop applications. At 0.437 inches wide and weighing under one pound, this collar is well suited for motion control assemblies, conveyor systems, and light industrial equipment where corrosion resistance and low mass are priorities. Licensed machinists and mechanical technicians are the typical installers.

This shaft collar fits shaft applications requiring a 0.625-inch bore. The clamp design allows it to be secured and repositioned without machining a groove into the shaft, preserving shaft integrity across repeated adjustments. The one-piece construction provides uniform clamping force around the shaft circumference. It is commonly used in HVAC blower assemblies, pump shaft retention, and general mechanical drive systems where a clean, reusable collar mount is required.

Key Features

• One-piece clamp style - no set screw groove required on the shaft
• 6061-T651 aluminum construction for corrosion resistance and reduced weight
• Plain bore, 0.625-inch diameter for direct shaft fit
• 1-5/16-inch outside diameter with plain finish
• 0.437-inch width suits space-constrained assemblies
• Manufactured under ISO 9001:2008 quality standards

Compatibility

Designed for use on shafts with a 0.625-inch diameter in light industrial, HVAC, and mechanical drive applications requiring a one-piece clamp-style collar.

Installation Notes

Installation is performed by licensed millwrights, mechanical technicians, or HVAC service professionals. De-energize all connected equipment and lock out the drive system before installing or repositioning the collar. Ensure the shaft surface is clean and free of burrs before tightening the clamp fastener. Do not overtighten - refer to the fastener manufacturer's torque specifications for the hardware supplied with the collar.
