Climatemaster CS17S0001N05 Control Board Programmed

Product Description

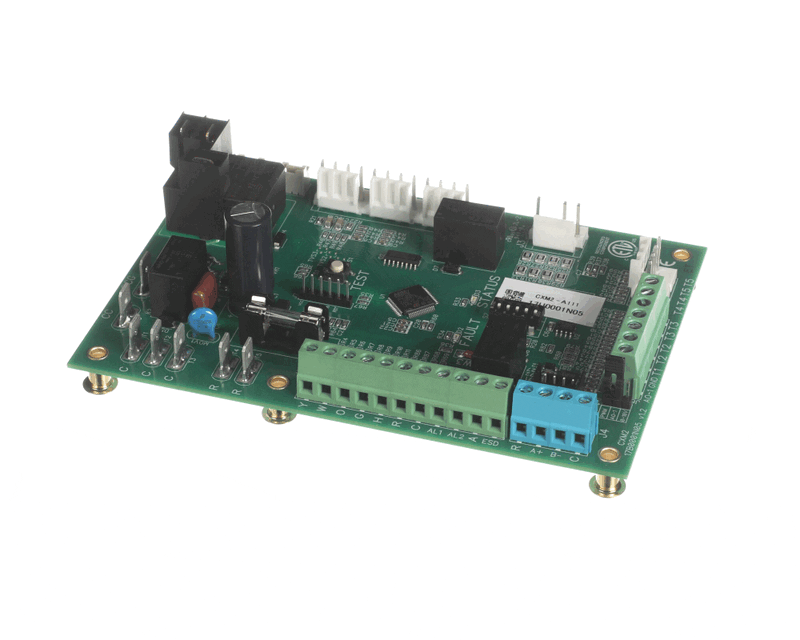

The CLIMATEMASTER CS17S0001N05 is a programmed OEM replacement control board designed to manage system sequencing, safety functions, and operational logic in ClimateMaster geothermal and water-source heat pump systems. As a direct replacement component, it ships pre-programmed with the CXM2 STD CE firmware configuration, eliminating the need for field programming at installation. This board governs compressor staging, fault diagnostics, and lockout logic to keep the system running within design parameters. Installation is performed by licensed HVAC technicians familiar with geothermal and hydronic equipment. The board measures 8.4 inches in length, 8.3 inches in width, and 3.8 inches in height, and weighs 0.78 pounds.

This control board is intended for use in ClimateMaster water-source and geothermal heat pump units requiring the CXM2 standard control module with CE configuration. It is suited for residential and light commercial applications where a pre-programmed drop-in control board replacement is needed to restore system operation without additional calibration steps. Technicians replacing a failed or damaged control board will find this unit ready for direct installation into compatible equipment.

Key Features

• Ships pre-programmed with CXM2 STD CE configuration for immediate installation
• OEM replacement part engineered to original design specifications
• Manages compressor sequencing, fault detection, and system lockout logic
• Compact form factor: 8.4 x 8.3 x 3.8 inches for installation in standard equipment cabinets
• Lightweight at 0.78 pounds, simplifying handling during service calls

Compatibility

Designed as an OEM-style replacement control board for ClimateMaster geothermal and water-source heat pump systems requiring the CXM2 STD CE control configuration.

Installation Notes

Installation should be performed by a licensed HVAC technician experienced with geothermal or water-source heat pump equipment. Disconnect and lock out all electrical power to the unit before removing the existing control board or handling any wiring connections. Follow the equipment manufacturer's wiring diagram for terminal assignments and verify all low-voltage connections are secure before restoring power. Dispose of the failed board in accordance with local regulations governing electronic components.

Technical Specifications

• Programming: Pre-programmed, CXM2 STD CE
• Length: 8.4 inches
• Width: 8.3 inches
• Height: 3.8 inches
• Weight: 0.78 pounds

Standard Information

• Brand: CLIMATEMASTER
• Manufacturer Part Number: CS17S0001N05
