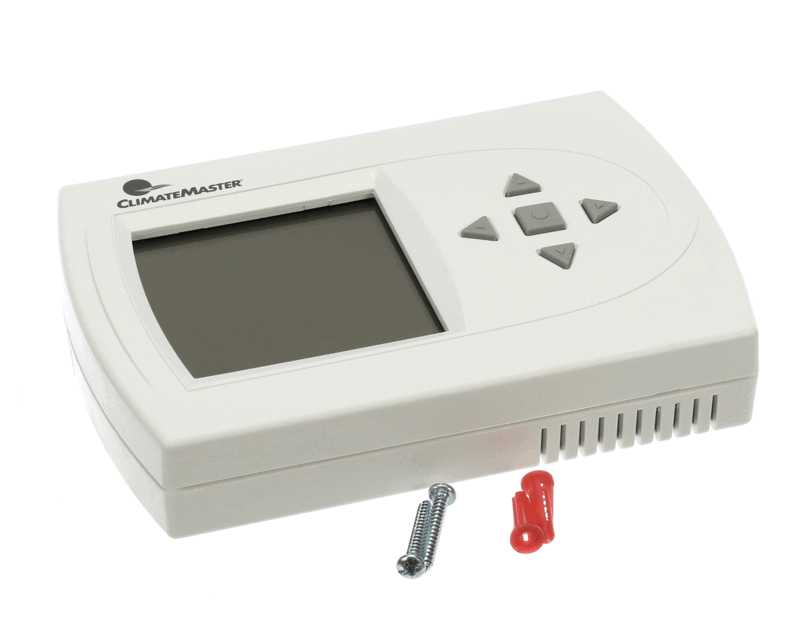

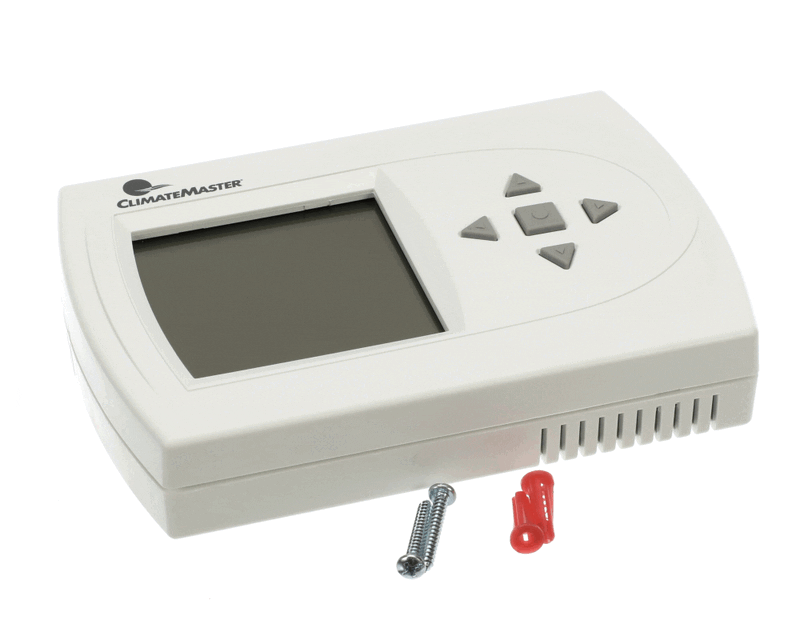

Climatemaster CATP32U03 Digital Programmable Thermostat

Product Description

The CLIMATEMASTER CATP32U03 is a digital, programmable thermostat designed for residential and light commercial HVAC applications operating at 24 volts. It supports up to 3 stages of heating and 2 stages of cooling, making it well suited for multi-stage heat pump and conventional forced-air systems. The unit provides straightforward temperature scheduling through an easy-to-use interface, giving technicians and building owners reliable setpoint control. Licensed HVAC technicians typically install and commission this thermostat as a direct OEM replacement in ClimateMaster systems.

This thermostat is intended for use in HVAC systems requiring multi-stage control, including geothermal heat pump and forced-air equipment that call for a 24-volt low-voltage control circuit. Its 3-heat and 2-cool stage configuration covers the majority of residential multi-stage system layouts. The programmable scheduling function allows temperature setback and setup programming to match occupancy patterns, reducing unnecessary runtime without manual adjustment.

Key Features

• Digital programmable design with easy-to-use interface for setpoint and schedule control
• Supports 3 heating stages and 2 cooling stages for multi-stage systems
• 24-volt low-voltage control circuit compatibility
• OEM replacement part for ClimateMaster HVAC equipment
• Programmable scheduling for occupancy-based temperature management

Compatibility

Designed as an OEM-style replacement thermostat for ClimateMaster HVAC systems requiring a 24-volt, 3-heat and 2-cool multi-stage programmable thermostat.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with the equipment manufacturer instructions and applicable local codes. Always set the system to the off position and confirm the 24-volt control circuit is de-energized before disconnecting or connecting thermostat wiring. Verify the system heat and cool stage configuration matches the thermostat settings before startup. Consult the equipment wiring diagram to confirm terminal assignments prior to powering the system.

Technical Specifications

• Voltage: 24 volts
• Heating Stages: 3
• Cooling Stages: 2
• Programmable: Yes
• Length: 16.95 inches
• Width: 4.95 inches
• Height: 2.45 inches

Standard Information

• Brand: CLIMATEMASTER
• Manufacturer Part Number: CATP32U03
