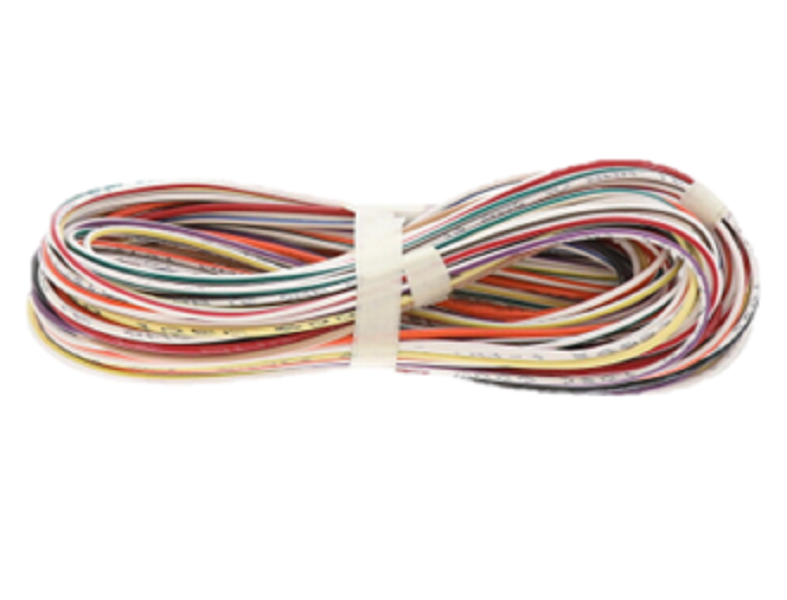

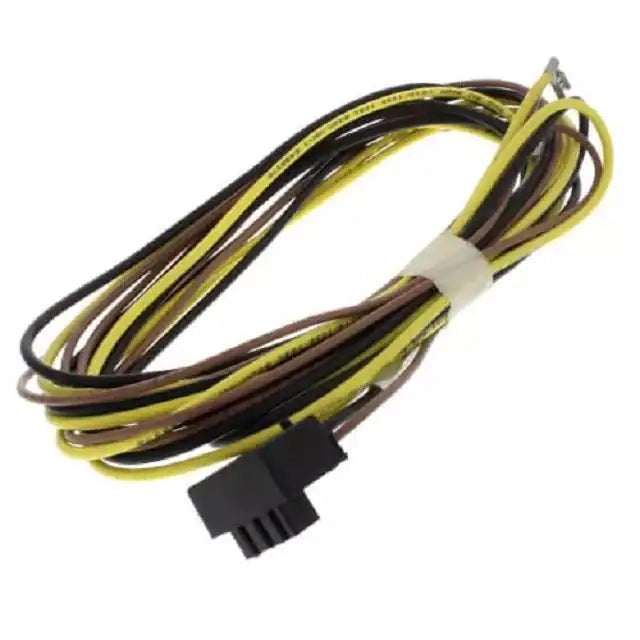

Climatemaster 69818301 Wire Harness Icm (6 ft)

Product Description

The Climatemaster 69818301 is a 6 ft wire harness designed for ICM control connections. It provides low-voltage communication between ICM controllers and motors or control boards, restoring signal integrity and reducing communication errors. The harness uses precision multi-pin connectors and heavy-duty insulation for secure connections in high-vibration HVAC and geothermal units. It is intended as an OEM replacement for ClimateMaster equipment and for routing in vertical or horizontal installations.

• 6 ft lead length for extended routing and connection reach
• OEM compatibility with ClimateMaster ICM controllers and ICM-style motor modules; compatible with DXM2 and CXM control boards
• Durable construction with precision multi-pin connectors and heavy-duty insulation for low-voltage control communication

Product Highlights

6 ft OEM wire harness for ClimateMaster ICM; precision multi-pin connectors; heavy-duty insulation for low-voltage control communication

Product Information

Standard Information

• Brand: CLIMATEMASTER
• Manufacturer Part Number: 69818301

Technical Specifications

• Brand: ClimateMaster
• Manufacturer Part Number: 69818301
• Product Type: Wire harness
• Length: 6 ft
• Lead Length: 6 ft
• Configuration: V
• Application: ICM controller to motor/control board communication; geothermal HVAC units (vertical and horizontal)
• Voltage Level: Low voltage
• Compatible Controllers/Boards: ICM-style motor modules; DXM2 and CXM control boards
• Construction: Precision multi-pin connectors; heavy-duty insulation
• Condition: New
