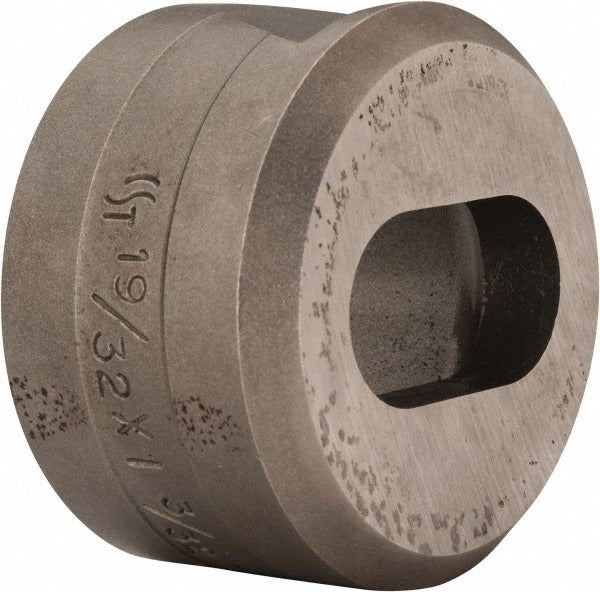

Cleveland Steel Tool 41392335 Oblong Ironworker Die

Product Description

The CLEVELAND STEEL TOOL 41392335 is an oblong ironworker die designed for use in ironworker machines to punch oblong slots through structural steel and metal plate. The die measures 1-3/32 inches long by 23/32 inches wide, with a 1-13/16 inch head diameter and a 1-1/8 inch head height. These dimensions make it a direct-fit replacement for standard ironworker die holders accepting that head size. Fabricators, structural steel workers, and metal fabrication shops rely on dies like this one to produce clean, consistent oblong punch-outs in a single press stroke without secondary operations.

This die is suited for structural fabrication environments where oblong slots are required for bolted connections, slotted holes, or other fit-up applications in steel framing, gussets, angle iron, and plate. It is used in ironworker machines equipped with a punch station that accepts a 1-13/16 inch diameter die. Typical applications include steel fabrication shops, erection contractors, and maintenance facilities that run ironworker equipment for repetitive punching operations on mild steel.

Key Features

• Oblong die shape produces clean slotted holes in a single stroke
• 1-3/32 inch length by 23/32 inch width punch opening for standard slotted-hole applications
• 1-13/16 inch head diameter for compatibility with standard ironworker die holders
• 1-1/8 inch head height provides proper seating depth in the die holder
• Sold individually, allowing single-die replacement without purchasing a full set

Compatibility

Designed as an OEM-style replacement die for ironworker machines that accept a 1-13/16 inch diameter die with a 1-1/8 inch head height. Verify your ironworker punch station die holder dimensions before installation.

Installation Notes

Installation should be performed by a qualified fabricator or ironworker machine operator following the machine manufacturer's service procedures. Always de-energize and lock out the ironworker machine before removing or installing any die components. Confirm the die seats fully and flush in the holder before resuming punching operations. Do not operate the machine with a loose or improperly seated die.
