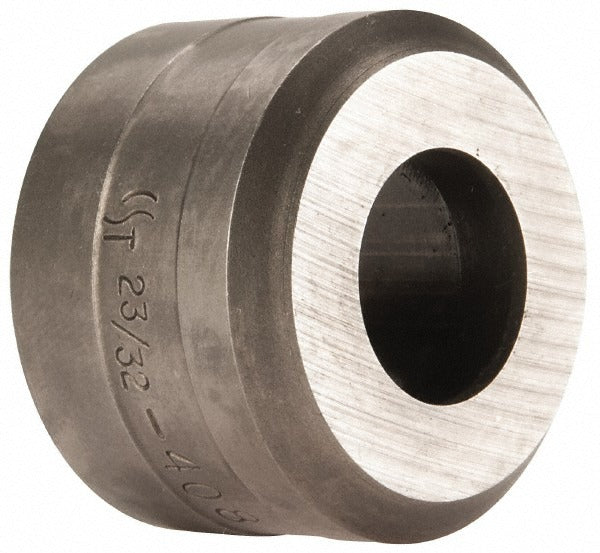

Cleveland Steel Tool 40823 Round Ironworker Die 23/32 in

Product Description

The CLEVELAND STEEL TOOL 40823 is a round ironworker die designed for use in ironworker machines to punch clean, accurate holes in steel plate, angle iron, and structural stock. The die measures 23/32 inches in cutting diameter with a 1.5-inch head diameter and 1-inch head height, giving it a solid, low-profile footprint that seats securely in standard ironworker die holders. This die is suited for fabrication shops, structural steel contractors, and ironworkers who need consistent hole quality in production punching operations.

This die is used in hydraulic and mechanical ironworker machines for punching round holes in mild steel and similar ferrous materials. It fits typical ironworker tooling setups where a 1.5-inch head diameter die is required. Common applications include structural fabrication, angle iron processing, flat bar punching, and general shop metalwork where repeatable hole geometry is critical.

Key Features

• 23/32 inch cutting diameter for precise round hole punching
• 1.5 inch head diameter for secure seating in standard ironworker die holders
• 1 inch head height provides a stable, low-profile punch surface
• Round die shape delivers clean, burr-minimizing hole geometry
• Compact weight of 0.25 pounds for easy handling and tool changeover

Compatibility

Designed as an OEM-style replacement or standard tooling die for ironworker machines that accept a 1.5-inch head diameter round die.

Installation Notes

Installation and replacement of ironworker dies should be performed by a qualified fabricator or ironworker technician. Always de-energize and lock out the ironworker machine before removing or seating any die tooling. Verify that the die head diameter matches the machine die holder specification before applying clamping force. Follow the equipment manufacturer guidelines and applicable ANSI machine tool safety standards during tooling changes.
