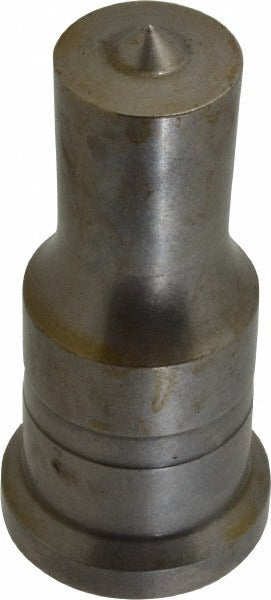

Cleveland Steel Tool 26430 Round Ironworker Punch

Product Description

The CLEVELAND STEEL TOOL 26430 is a round ironworker punch designed for use in hydraulic ironworker machines. It produces clean, precise round holes in steel plate and structural steel. The punch measures 15/16 inch in hole diameter, with a 1-1/4 inch body diameter and a 1-1/2 inch head diameter. Overall length is 3-1/8 inches. Weighing 0.91 pounds, this is a compact, solid tool built for repetitive punching operations in fabrication and metalworking environments. Installation and replacement are handled by trained ironworker operators and metal fabrication professionals.

This punch is intended for use in hydraulic ironworker machines across fabrication shops, structural steel operations, and metal manufacturing facilities. It is compatible with several widely used ironworker machine brands. Typical applications include punching bolt holes in angle iron, flat bar, and steel plate. The 15/16 inch diameter is a common size used in structural steel connection work where standard bolt clearance holes are required.

Key Features

• 15/16 inch round punch diameter for standard bolt clearance hole applications
• 1-1/4 inch body diameter provides stable seating in the punch holder
• 1-1/2 inch head diameter for positive retention against the machine ram
• 3-1/8 inch overall length fits standard ironworker punch stations
• 0.91 pound weight reflects solid steel construction suited for high-cycle punching

Compatibility

Compatible with the following ironworker machines: Clausing/Metal Muncher, Controlled Automation, Franklin, Peddinghaus, and W.A. Whitney.

Installation Notes

Installation is performed by qualified ironworker operators or metal fabrication technicians. Always de-energize and lock out the ironworker machine before replacing punch tooling. Ensure the punch is fully seated and the retaining hardware is secured before resuming operation. Verify that the die opening matches the punch diameter per the tooling manufacturer's specifications before punching.
