Cleveland Steel Tool 22017 Round Ironworker Punch

Product Description

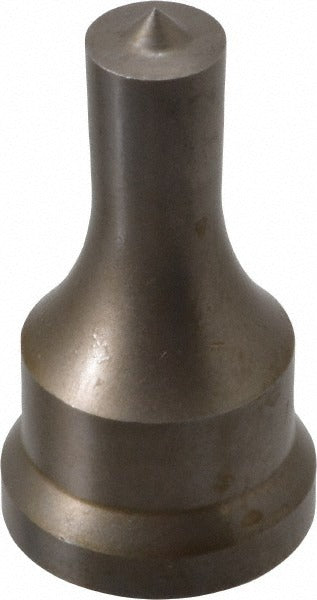

The CLEVELAND STEEL TOOL 22017 is a round ironworker punch designed for use in ironworker machines to punch clean holes through steel plate, angle iron, and structural steel. The punch measures 17/32 inches in diameter at the cutting tip, with a body diameter of 1.0625 inches and an overall length of 2.1875 inches. The 1.24-inch head diameter seats securely in the ironworker ram. At 0.51 pounds, it is a compact, solid-steel punch suited for repetitive production punching in fabrication and structural work environments. Ironworker operators and metal fabricators are the primary users of this tooling.

This punch is intended for use in ironworker machines equipped with the appropriate matching die and punch holder for this body diameter and head size. Typical applications include punching bolt holes and connection holes in structural steel members, steel plate, and flat bar stock. It is commonly used in steel fabrication shops, ironworking operations, and field structural work where clean, consistent round holes are required in ferrous material.

Key Features

• 17/32 inch round cutting diameter for standard bolt-clearance hole punching
• 1.0625 inch body diameter for secure seating in compatible punch holders
• 1.24 inch head diameter for positive retention in the ironworker ram
• 2.1875 inch overall length suits standard ironworker tooling setups
• Compact 0.51 pound weight for easy handling during tooling changes

Compatibility

Designed as an OEM-style replacement or production punch for ironworker machines accepting a 1.0625 inch body diameter punch with a 1.24 inch head diameter. Confirm punch holder and die specifications on your ironworker before installation.

Installation Notes

Installation should be performed by a qualified ironworker operator or metal fabricator familiar with ironworker tooling. Always de-energize and lock out the ironworker machine before changing punches or dies. Verify that the matching die opening corresponds to the punch diameter and material thickness per tooling manufacturer guidelines. Never operate the machine with mismatched or improperly seated tooling.
