Cleveland Controls AFS-238 Pressure Switch 0.05-12 in W.C. (1 Pack)

Product Description

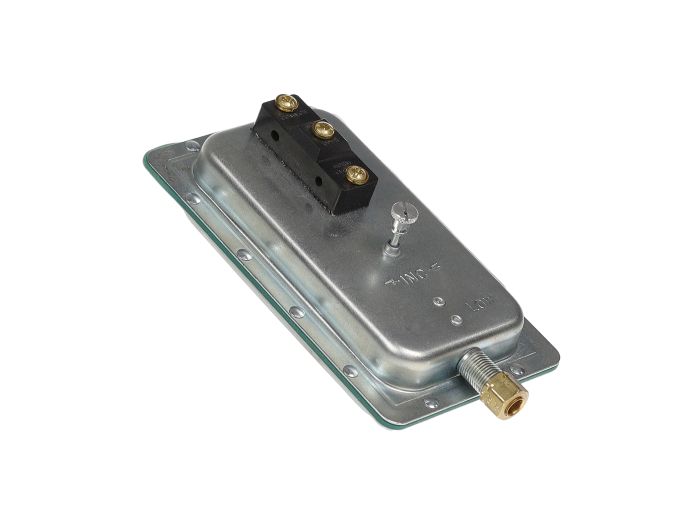

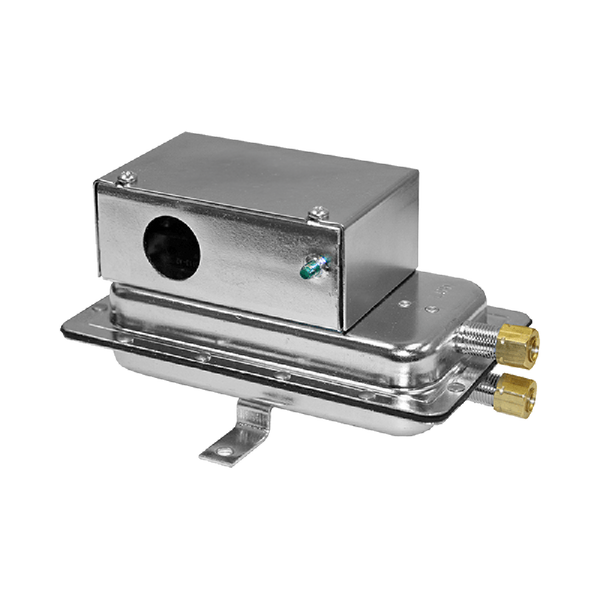

The Cleveland Controls AFS-238 is a surface-mount air pressure sensing switch with an adjustable setpoint range for HVAC and proving applications. It uses a diaphragm and calibration spring to actuate a snap-acting SPDT contact and can sense positive, negative, or differential pressure across approximately 0.05 �0.02 to 12.0 in W.C. The switch includes screw terminal electrical connections and ferrule-and-nut compression tubing connectors for 0.25 in OD.

• Setpoint range 0.05 �0.02 to 12.0 in W.C.; field adjustable operate and release ranges
• Snap-acting SPDT switch with screw terminal electrical connection and diaphragm vertical mount
• Two ferrule-and-nut compression connectors accept 0.25 in OD tubing; maximum pressure 0.5 psi; operating temperature -40 to 180 F

Product Highlights

Surface-mount SPDT air pressure switch, adjustable 0.05�12 in W.C., screw terminals, 0.5 psi max

Product Information

Standard Information

• Brand: CLEVELAND CONTROLS
• Manufacturer Part Number: AFS-238
• Country of Origin: United States

Technical Specifications

• Brand: Cleveland Controls
• Manufacturer Part Number: AFS-238
• Product Series: AFS
• Description: Surface-mount air pressure sensing switch for HVAC and proving applications
• Setpoint Range: 0.05 �0.02 to 12.0 in W.C.
• Pressure Range (alternate): 0.05 to 12 in W.C.
• Maximum Pressure: 0.5 psi (0.03 bar)
• Switch Type: Snap-acting SPDT
• Electrical Connection: Screw terminals
• Connectors: Two ferrule-and-nut compression connectors (accept 0.25 in OD tubing); some variants may use barbed sample line connectors
• Terminals: Open mount switch terminals
• Mounting Type: Surface mount; diaphragm vertical
• Operating Temperature Range: -40 to 180 F (-40 to 82 C)
• Approximate Switching Differential: Progressive, from 0.02 �0.01 in W.C. to ~0.8 in W.C.
• Field Adjustable Operate Range: 0.07 to 12.0 in W.C.
• Field Adjustable Release Range: 0.04 to 11.2 in W.C.
• Lifespan (cycles): Minimum 100,000 cycles at 1/2 psi and maximum rated electrical load
• Voltage / Contact Rating: Contact is a dry snap-acting SPDT contact suitable for AC mains switching (manufacturer lists compatibility up to typical building voltages; verify exact contact amperage from datasheet)
• Approvals: CE, CSA, cUL, FM, UL
• Connection Thread: 7/16-24 UNS 2A male (fitting thread for compression connector)
• Net Weight: 0.695 lbs
• Country of Origin: United States
• Package Quantity: 1
