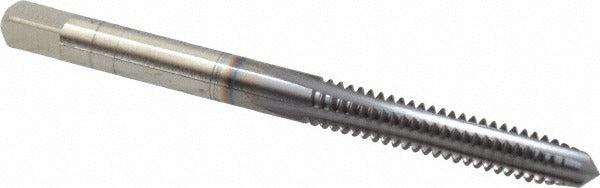

Cleveland C56058 Hand Tap 10-24 Unc Plug Ticn Hss

Product Description

The CLEVELAND C56058 is a 10-24 UNC straight flute hand tap designed for cutting internal threads in metalworking applications. Built from high speed steel with a TiCN (titanium carbonitride) coating, it delivers extended tool life and reduced friction compared to uncoated HSS taps. The plug chamfer configuration makes it suitable for both through-hole and blind hole threading. With an H3 thread limit and a Class 2B fit, this tap produces threads that meet standard tolerance requirements for most general-purpose fastener applications. Overall length is 2.375 inches with a 0.5-inch thread length.

This tap is used in machine shops, maintenance facilities, and field service environments where 10-24 UNC internal threads are required. It is rated for use in cast iron, stainless steel, and steel. The 4-flute straight flute geometry is well suited to both through-hole and blind hole threading operations. Right-hand thread direction is standard for conventional 10-24 UNC fastener work. Machinists and toolroom technicians will find this appropriate for hand tapping operations with a tap wrench or when used in tapping heads on manual machines.

Key Features

• TiCN coating improves wear resistance and reduces galling in stainless and steel materials
• High speed steel construction withstands heat generated during tapping operations
• Plug chamfer (3-5 thread lead) starts easily and works in both through-hole and blind hole applications
• 4-flute straight flute design provides chip control in a range of ferrous materials
• H3 thread limit and Class 2B fit meet standard tolerance requirements for general-purpose threaded assemblies
• 0.194-inch shank diameter with 0.25-inch square drive for use with standard tap wrenches and holders

Compatibility

Designed for cutting 10-24 UNC internal threads in cast iron, stainless steel, and steel workpieces. Part of the Cleveland Series 1002TICN TiCN-coated hand tap line.

Installation Notes

Secure the workpiece and ensure the tap is aligned perpendicular to the drilled hole before starting. Use appropriate cutting fluid for the material being tapped, especially when working with stainless steel. Back off periodically to break chips and prevent tap binding or breakage. Worn or damaged taps should be replaced before use to avoid thread damage or tool breakage in the workpiece.
