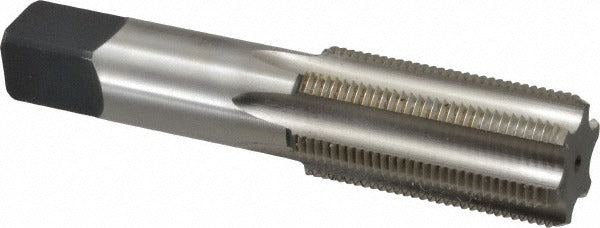

Cleveland C55002 Hand Tap 1-1/4-12 Unf Bottoming Hss

Product Description

The CLEVELAND C55002 is a straight-flute hand tap designed for cutting 1-1/4-12 UNF internal threads in both blind and through-hole applications. Manufactured from high speed steel with a bright (uncoated) finish, this tap delivers consistent thread quality in a wide range of ferrous and non-ferrous materials. It features a bottoming chamfer, meaning the cutting geometry begins threading very close to the bottom of a blind hole, making it the correct choice when full threads must extend to the floor of a drilled cavity. The tap has 6 flutes, a Class 3B fit, and a Thread Limit of H4. Overall length is 5.75 inches with a thread length of 2.56 inches.

This tap is suited for machine shops, maintenance facilities, and field threading operations where 1-1/4-12 UNF threads are required. The bottoming chamfer configuration is typically used as the final tap in a sequence after a taper or plug tap has started and advanced the thread. It performs in alloy steel, carbon steel, aluminum, and free-machining stainless steel. Thread direction is right hand. The straight-flute design is appropriate for through-hole threading and short-chipping materials. Series 1003.

Key Features

• Bottoming chamfer for threading to the bottom of blind holes
• 6-flute straight-flute geometry suited for short-chipping materials and through-hole work
• High speed steel construction for durability across ferrous and non-ferrous workpieces
• Bright uncoated finish — compatible with a variety of cutting fluids
• Class 3B fit with H4 thread limit for close-tolerance internal threads
• Right-hand thread direction, 1-1/4-12 UNF thread standard

Compatibility

Designed for cutting 1-1/4-12 UNF internal threads in alloy steel, carbon steel, aluminum, and free-machining stainless steel. Suitable for both blind-hole and through-hole threading applications.

Installation Notes

This tap is intended for use by machinists and trained trades personnel operating manual or CNC tapping equipment. Ensure the workpiece is securely fixtured and the pilot hole is drilled to the correct tap drill diameter for a 1-1/4-12 UNF thread before use. Apply an appropriate cutting fluid for the workpiece material to reduce tool wear and improve thread finish. As a bottoming tap, use it as the final step in a tapping sequence after a taper or plug tap has already started the thread.
