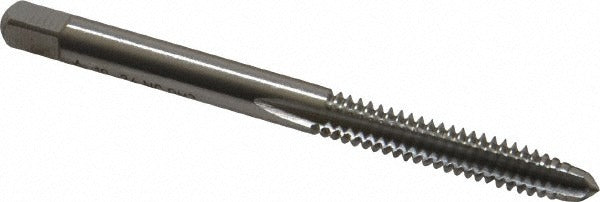

Cleveland C54327 Hand Tap 10-24 Unc Plug Hss

Product Description

The CLEVELAND C54327 is a straight-flute hand tap designed for cutting 10-24 UNC internal threads in both blind and through-hole applications. Made from high speed steel with a bright uncoated finish, this tap runs in a right-hand direction and carries an H3 thread limit for consistent dimensional control. The plug chamfer — typically 3 to 5 lead threads — provides a balanced entry that suits both production and repair threading work. With an overall length of 2.375 inches and a 0.500-inch thread length, the C54327 is sized for standard #10 fastener applications across a wide range of materials.

This tap is suited for machine shops, maintenance facilities, and field repair environments where 10-24 UNC threads are required. Its 3-flute straight-flute geometry works in both blind holes and through holes, making it a general-purpose choice for machinists and technicians threading alloy steel, carbon steel, aluminum, and free-machining stainless steel. The bright finish is compatible with standard cutting fluids and tapping compounds.

Key Features

• 10-24 UNC thread form with plug chamfer for versatile blind and through-hole threading
• High speed steel construction for durability across ferrous and non-ferrous materials
• H3 thread limit maintains consistent 2B and 3B class-of-fit tolerances
• 3-flute straight-flute design for balanced cutting action and chip management
• Bright uncoated finish — compatible with a wide range of cutting fluids
• Right-hand thread direction; no coolant-through feature required for hand or light machine use

Compatibility

Designed for cutting 10-24 UNC internal threads in alloy steel, carbon steel, aluminum, and free-machining stainless steel in both blind-hole and through-hole configurations. Part of Cleveland Series 1002.

Installation Notes

Install and drive using a standard tap wrench or tapping fixture appropriate for the shank diameter. Always apply a suitable cutting fluid or tapping compound matched to the workpiece material before starting the thread. Back the tap out periodically to break chips and prevent binding, especially in blind holes. Follow all applicable shop safety practices and secure the workpiece firmly before tapping.
