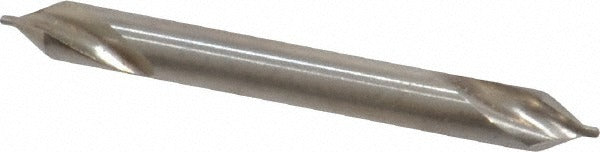

Cleveland C46261 Combo Drill Countersink Size 00 Hss

Product Description

The CLEVELAND C46261 is a combination drill and countersink designed for simultaneous drilling and countersinking in a single operation. Built from high-speed steel (HSS) with a bright, uncoated finish, this Size 00 tool features a 0.025-inch drill point diameter and a 118-degree drill point angle. The 60-degree included countersink angle is standard for most countersunk fastener applications. At 1.125 inches overall length with a 1/8-inch body diameter, the C46261 is compact and suited for precise work in tight clearances. It is a right-hand cut tool with a plain cutting edge and double end type.

This combo drill countersink is used in metalworking and fabrication applications where a countersunk hole must be drilled and chamfered in one pass. Suitable workpiece materials include alloy tool steel, aluminum, carbon steel, and cast iron. It fits both production and maintenance environments and is a common choice for machinists, tool-and-die workers, and industrial maintenance technicians working with countersunk screws and rivets.

Key Features

• Simultaneous drilling and countersinking in one pass reduces setup time
• High-speed steel construction for durability across steel, aluminum, and cast iron
• 118-degree drill point angle for clean entry on common metals
• 60-degree included countersink angle matches standard countersunk fastener geometry
• Bright, uncoated finish for general-purpose metalworking use
• Right-hand cut with plain cutting edge and double end type

Compatibility

Designed for use on alloy tool steel, aluminum, carbon steel, and cast iron workpieces. Compatible with standard machine tool holders that accept a 1/8-inch body diameter shank.

Installation Notes

This tool is installed and operated by machinists and metalworking technicians using drill presses, lathes, or CNC equipment. Secure the tool firmly in the appropriate collet or chuck before operation. Use appropriate cutting fluid for the workpiece material to extend tool life and improve finish quality. Inspect the cutting edges before each use and replace the tool if chipping or wear is observed.
