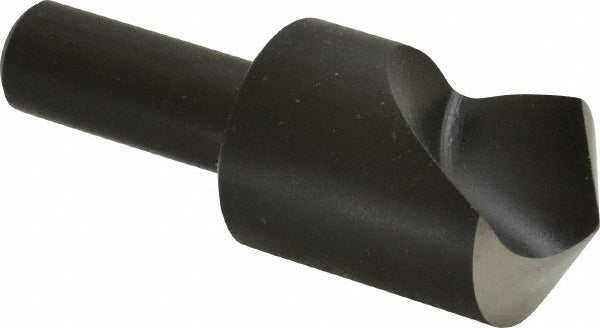

Cleveland C46135 Countersink 1 in 120 Deg Hss Right Hand

Product Description

The CLEVELAND C46135 is a single-flute countersink designed for creating accurately angled seat profiles in ferrous materials. Built from high speed steel (HSS) with an oxide finish for reduced friction and improved chip flow, this tool features a 1 inch head diameter and a 120-degree included angle, which corresponds to a 60-degree centerline angle. The straight-cylindrical shank measures 0.5 inches in diameter, making it compatible with standard drill chucks and milling setups. No pilot is included, and the end type is single. Licensed tradespeople in machining, fabrication, and industrial maintenance are the primary installers of this tooling.

The C46135 is suited for countersinking operations in carbon steel and cast iron workpieces. Its right hand cutting direction and single-flute geometry make it effective in applications where clean entry angles are required for fastener seating, deburring, or chamfering operations. The oxide surface treatment provides a mild level of lubricity and corrosion resistance appropriate for general shop use. This tool is sold individually and is intended for use in both production and maintenance environments.

Key Features

• 1 inch head diameter with 120-degree included angle for standard fastener countersinking
• Single flute geometry provides clean cutting action in carbon steel and cast iron
• High speed steel construction for durability in ferrous material applications
• Oxide finish reduces friction and provides light corrosion protection
• Straight-cylindrical 0.5 inch shank fits standard drill chucks and collets
• Right hand cut, no pilot included, single end type

Compatibility

Designed for countersinking operations in carbon steel and cast iron. Compatible with standard drill presses, milling machines, and hand-held equipment fitted with a chuck or collet accepting a 0.5 inch straight-cylindrical shank.

Installation Notes

This tool is installed and operated by machinists, tool and die makers, or skilled maintenance technicians. Always secure the workpiece before beginning a countersinking operation, and confirm the machine is powered down and locked out before changing tooling. Use appropriate cutting fluid or lubricant for the material being machined to extend tool life. Follow applicable shop safety standards and equipment manufacturer guidelines for speed and feed settings.
