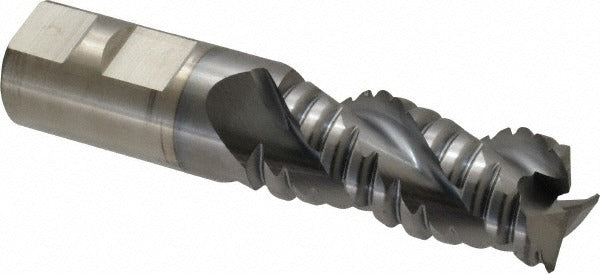

Cleveland C40021 Corner Radius End Mill 1 in 3 Flute Ticn

Product Description

The CLEVELAND C40021 is a corner radius end mill engineered for high-performance milling in demanding industrial and machining applications. Built to Series PM-538R specifications, it features a 1-inch cutting diameter, a 2-inch length of cut (LOC), and a 4.5-inch overall length (OAL). The tool uses a TiCN (Titanium Carbonitride) coating to reduce friction and extend tool life in abrasive materials. With 3 spiral flutes and a 42-degree helix angle, it delivers efficient chip evacuation and smooth surface finishes. The centercutting design allows plunge milling operations. The 1-inch shank diameter provides rigid tool holding in standard end mill holders.

This end mill is suited for machining operations in metalworking environments including job shops, production floors, and tool rooms. The coarse pitch and right-hand cutting and flute direction make it appropriate for conventional and climb milling on ferrous and non-ferrous metals. The TiCN coating performs well in materials such as alloy steels, cast iron, and hardened workpieces where tool wear is a primary concern. It is installed by machinists and CNC operators in vertical and horizontal machining centers as well as manual knee mills.

Key Features

• TiCN coating reduces wear and friction for extended tool life in abrasive materials
• 42-degree helix angle promotes efficient chip evacuation and reduces cutting forces
• 3 spiral flutes with coarse pitch suited for aggressive material removal
• Centercutting geometry allows direct plunge entry into workpiece
• Right-hand cut and right-hand flute direction for standard spindle rotation
• Series PM-538R construction for consistent dimensional accuracy

Compatibility

Designed as an OEM-style replacement and standard fit for 1-inch end mill holders and collet chucks used in CNC machining centers and manual milling machines requiring a 1-inch shank.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Secure the shank fully into a clean, properly sized end mill holder or collet chuck and torque the retention mechanism per the toolholder manufacturer specifications. Inspect the tool for runout with a dial indicator before machining. Never exceed the recommended depth of cut or feed rate for the workpiece material and machine spindle rating.
