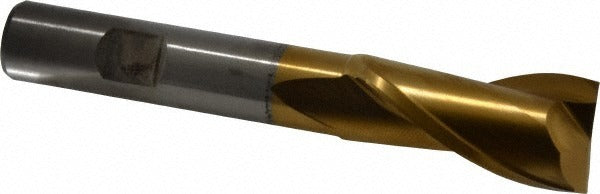

Cleveland C33781 Square End Mill 11/16 in 2 Flute Hss Tin

Product Description

The CLEVELAND C33781 is a 2-flute, square-end, single-end mill ground from high speed steel (HSS) and finished with a titanium nitride (TiN) coating. It measures 11/16 inches (0.6875 inches) in cutting diameter with a 1-5/16 inch length of cut, a 1/2 inch straight-cylindrical shank with Weldon flat, and a 3-5/8 inch overall length. The 30-degree spiral flute geometry and centercutting capability allow both peripheral and plunge operations. The TiN finish extends tool life by reducing friction and improving wear resistance on demanding workpiece materials. This tool is part of the Cleveland HG-2 series and is sized for standard milling chucks and collet systems.

The C33781 is suited for milling operations on cast iron, non-ferrous metals, and steel in job shop and production environments. Its regular-length classification and 1/2 inch shank fit a wide range of vertical and horizontal milling machines, CNC machining centers, and manual knee mills. Right-hand cut and right-hand flute configuration are standard for conventional and climb milling setups. The 2-flute count provides good chip clearance when slotting or working in softer or gummy materials.

Key Features

• 11/16 inch (0.6875 inch) cutting diameter with 1-5/16 inch length of cut
• High speed steel construction with TiN coating for enhanced wear resistance
• 30-degree helix angle spiral flute for efficient chip evacuation
• Centercutting design enables direct plunge entry into the workpiece
• Right-hand cut, right-hand flute — standard orientation for most milling setups
• Straight-cylindrical shank with Weldon flat for secure tool holding

Compatibility

Designed for use on cast iron, non-ferrous metals, and steel workpieces. Compatible with 1/2 inch milling chucks, Weldon-style holders, and collet systems accepting a 1/2 inch straight shank.

Installation Notes

Installation is performed by a machinist or tooling technician. Secure the shank fully in a Weldon-flat holder or collet chuck and confirm runout before cutting. Power down and lock out the spindle before changing tooling. Do not exceed the tool manufacturer's recommended speeds and feeds for the workpiece material and depth of cut.
