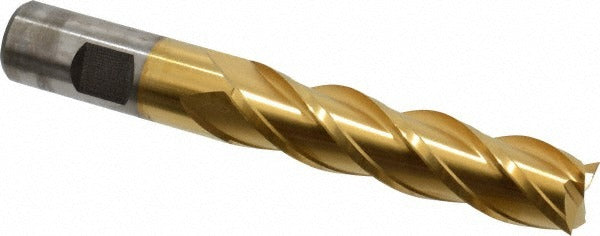

Cleveland C32022 Square End Mill 3/4 in 4 Flute Pm Tin

Product Description

The CLEVELAND C32022 is a 4-flute square end mill designed for general-purpose and high-performance milling operations in ferrous and non-ferrous materials. Built from M42 powdered metal (PM) tool steel and finished with a TiN (titanium nitride) coating, it delivers improved hardness and wear resistance over standard HSS tooling. The 37-degree spiral helix promotes efficient chip evacuation and smoother cutting action. With a 3/4 inch cutting diameter, 2 inch length of cut, and 3/4 inch straight shank, this end mill fits standard ER and side-lock toolholders common in CNC machining centers and manual knee mills.

This end mill is suited for slotting, profiling, and peripheral milling in job shop and production environments. The centercutting geometry allows direct plunge entry without a pre-drilled hole. Right-hand cut and right-hand flute configuration is the standard setup for conventional and climb milling on vertical machining centers. It is typically installed and operated by machinists and CNC setup technicians in metalworking, toolroom, and manufacturing applications. The PM-4 series targets demanding applications where standard M2 HSS tooling wears prematurely.

Key Features

• M42 powdered metal construction for higher hardness and heat resistance versus standard HSS
• TiN finish extends tool life and reduces friction at the cutting edge
• 37-degree helix angle promotes aggressive chip evacuation in deep slots and pockets
• Centercutting design allows direct plunge milling without a starter hole
• 4-flute configuration balances chip clearance with surface finish quality
• Right-hand cut and right-hand flute — compatible with standard CNC spindle rotation

Compatibility

Designed as a standard 3/4 inch shank square end mill compatible with ER32, ER40, and equivalent collet systems, as well as side-lock and Weldon-flat toolholders accepting a 3/4 inch shank diameter.

Installation Notes

Installation is performed by qualified machinists or CNC technicians. Always power down and lock out the spindle before changing tooling. Seat the shank fully into the toolholder to the minimum insertion depth recommended by the holder manufacturer, and verify runout with a dial indicator before cutting. Confirm spindle speed and feed rate are appropriate for the workpiece material and depth of cut before engaging the tool.
