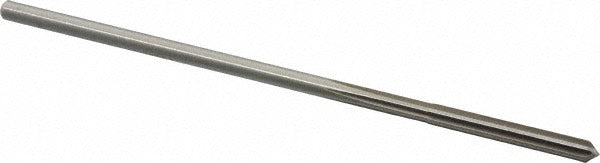

Cleveland C25226 Chucking Reamer Size 30 Hss Straight Flute

Product Description

The CLEVELAND C25226 is a straight-flute chucking reamer designed for precision hole finishing in metal machining operations. Built from high-speed steel (HSS) with a bright, uncoated finish, it delivers consistent sizing in applications where dimensional accuracy is critical. The reamer measures 0.1285 inches in diameter (wire size 30) with an overall length of 3.5 inches and a flute length of 0.875 inches. Six straight flutes provide smooth, controlled material removal with a right-hand cutting direction. This tool is intended for use in drill presses, lathes, and CNC machine tools where a chucking-style straight shank is required.

This reamer is suited for production and job-shop machining environments where through-holes or blind holes require finishing to tight tolerances. It is appropriate for use in ferrous and non-ferrous metals where HSS tooling provides adequate tool life. Wire size 30 corresponds to a decimal diameter of 0.1285 inches, placing it in the 0.1000 to 0.1499 inch diameter range. Machinists, toolroom operators, and CNC programmers working with small-diameter precision holes will find this reamer applicable to a wide range of finishing tasks.

Key Features

• Wire size 30 diameter at 0.1285 inches for precision small-hole finishing
• High-speed steel construction for durability in metal cutting applications
• Six straight flutes with right-hand cut for smooth, accurate material removal
• Straight shank compatible with standard drill chucks and collet holders
• Bright, uncoated finish suitable for use with cutting fluids
• Compact 3.5-inch overall length for use in confined setups

Compatibility

Designed as an OEM-style chucking reamer for use in standard drill chucks, collet systems, and lathe tailstocks that accept straight-shank tooling in the small-diameter range.

Installation Notes

Chucking reamers are installed and operated by machinists and toolroom professionals. Secure the straight shank firmly in a drill chuck or collet before use and ensure the workpiece is properly clamped. Always apply an appropriate cutting fluid for the material being reamed to extend tool life and maintain hole quality. Do not use a reamer to remove excessive stock; pre-drill to within the recommended allowance before reaming to final size.
