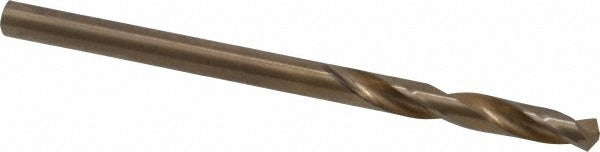

Cleveland C14570 Screw Machine Drill Bit No. 31 Cobalt

Product Description

The CLEVELAND C14570 is a screw machine length drill bit designed for high-productivity drilling in demanding trade and industrial applications. Built from M42 cobalt high-speed steel with a coated finish, it carries a No. 31 wire gauge diameter of 0.1200 inches and an overall length of 1.875 inches. The 135-degree split point reduces thrust force and self-centers on entry, minimizing the need for a center punch on most surfaces. Two spiral flutes with a web-thinned, parallel web configuration promote chip evacuation and reduce heat buildup during continuous use. This bit is sold individually and must be ordered in multiples of 10.

The C14570 is suited for drilling alloy steels and aluminum in high-cycle production environments, machine shops, and fabrication settings. Its screw machine length — shorter than jobber length — provides added rigidity and reduces deflection when used in drill presses, CNC machining centers, turret lathes, and hand-held power tools where stub-length bits are specified. The straight cylindrical shank fits standard drill chucks without modification. Right-hand cutting direction is standard for conventional drilling operations.

Key Features

• M42 cobalt steel construction for heat and wear resistance in tough alloy and aluminum drilling
• 135-degree split point with web thinning for reduced entry thrust and self-centering performance
• Screw machine (stub) length at 1.875 inches OAL for increased rigidity and reduced deflection
• Two spiral flutes with parallel web configuration for efficient chip clearance
• Diameter tolerance held to +0.0000 to -0.0005 inches for consistent, precise hole sizing
• Meets ASME B94.11M and DIN 1897 standards; ANSI and DIN designated

Compatibility

Designed for use with standard drill chucks accepting a 0.1200-inch straight cylindrical shank. Primary workpiece materials include alloy steel and aluminum. Part of Cleveland Series 2133 heavy-duty screw machine drill bits.

Installation Notes

Installation and operation of this drill bit should be performed by qualified machinists or trade professionals familiar with rotary cutting tools. Ensure the drill chuck is fully tightened and the bit is seated squarely before operation. Use appropriate cutting fluid or coolant for the workpiece material when drilling alloy steels to extend tool life and maintain hole quality. Inspect the cutting edges for wear or chipping before each use and replace the bit if the point is degraded.
