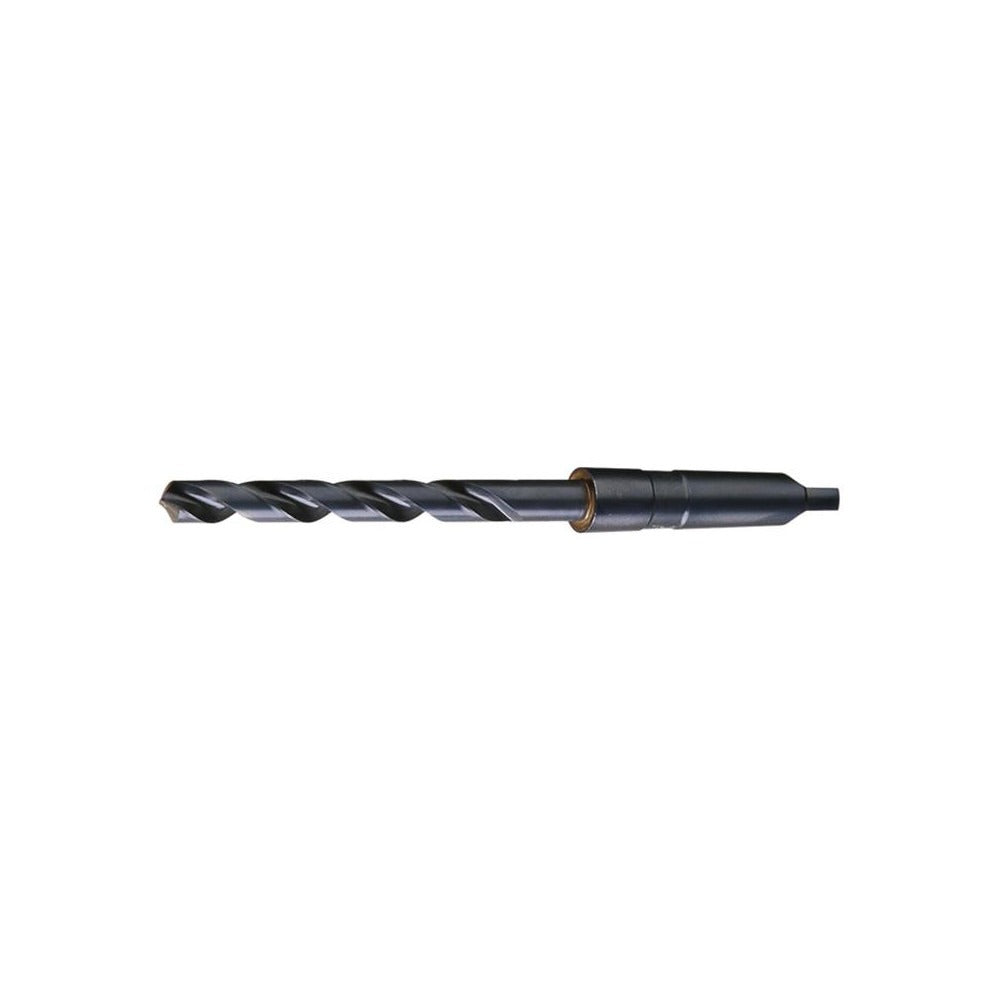

Cleveland C12196 Taper Shank Drill Bit 37/64 in 2MT Hss

Product Description

The CLEVELAND C12196 is a taper shank twist drill bit designed for production drilling in metal, wood, and general-purpose materials. Machined from high-speed steel with an oxide finish, it measures 37/64 inches (0.5781 inches) in diameter and accepts a No. 2 Morse taper shank for secure seating in compatible spindles and drill press quills. The 118-degree standard point geometry and right-hand spiral flute make it a reliable workhorse for through-hole and blind-hole applications across a wide range of materials. Machinists, tool-and-die technicians, and maintenance professionals use this bit in drill presses, turret lathes, and milling machine spindles where a straight-shank chuck is not appropriate.

This bit suits general-purpose drilling in ferrous and non-ferrous metals, plastics, and similar stock. The No. 2 Morse taper shank is a standard fitment on mid-size drill presses and lathes found in job shops, maintenance departments, and fabrication facilities. With a 4-7/8 inch flute length and 8-3/4 inch overall length, it handles moderate stock thickness and allows adequate chip clearance during extended cuts. The regular spiral and web-thinned point reduce entry force and help maintain hole accuracy at the rated diameter tolerance.

Key Features

• High-speed steel construction for durability in general-purpose metal drilling
• Oxide finish provides mild corrosion resistance and reduces friction at the cutting edge
• 118-degree standard point with web thinning reduces thrust and improves chip flow
• No. 2 Morse taper shank seats directly in compatible spindles without an additional chuck
• Right-hand cutting direction with regular spiral flute for efficient chip evacuation
• Meets ASME B94.11M standards for drill bit geometry and dimensional tolerances

Compatibility

Designed for use in drill presses, lathes, and milling machines equipped with a No. 2 Morse taper spindle socket. Fits any machine tool accepting a standard 2MT shank per ASME B94.11M.

Installation Notes

Installation is performed by machinists or qualified maintenance technicians familiar with machine tool operation. Before inserting or removing the taper shank, power down and lock out the machine per applicable OSHA lockout/tagout procedures. Clean the taper shank and spindle socket of chips and oil before seating to ensure full contact and prevent shank slip under load. Use a proper drift key and brass hammer to eject the bit from the spindle — never strike the spindle directly.
