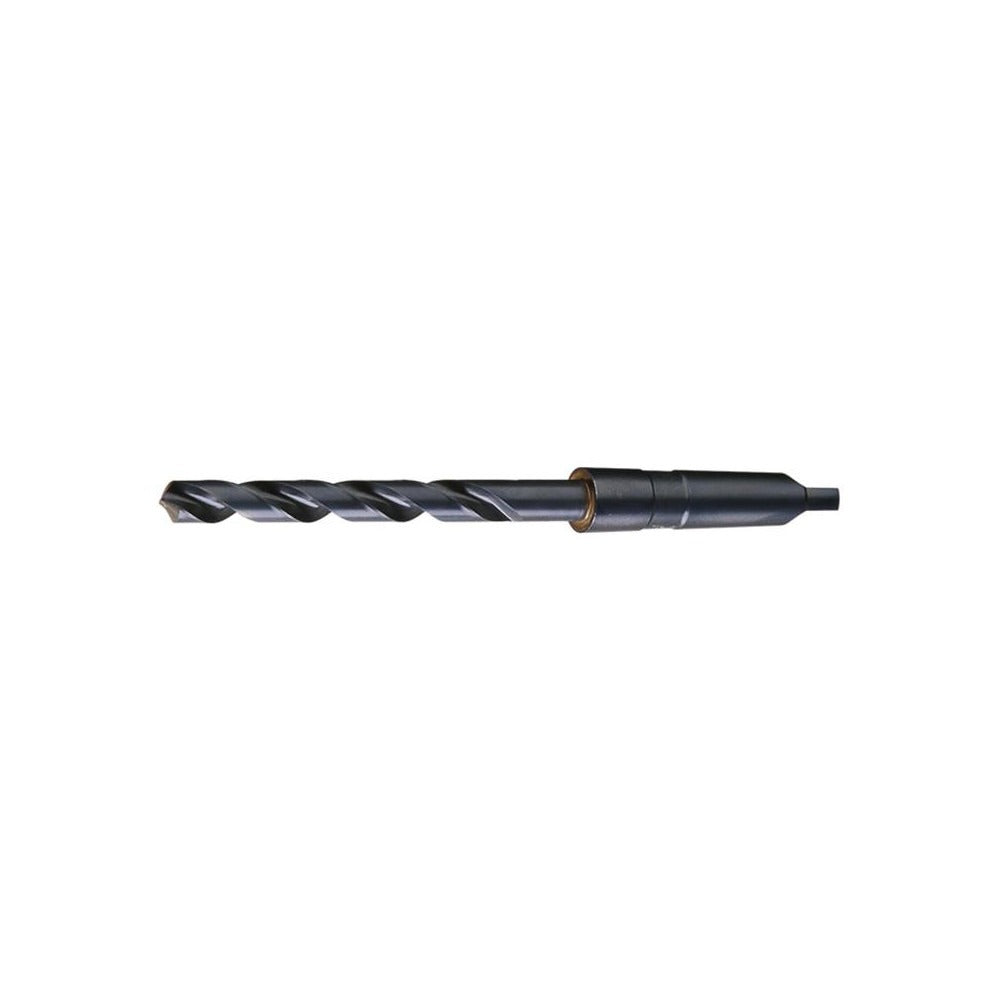

Cleveland C12170 Taper Shank Drill Bit 27/64 in 1MT Hss

Product Description

The CLEVELAND C12170 is a taper shank drill bit designed for general-purpose drilling in metal, wood, and similar materials. It features a 27/64-inch diameter cutting edge ground to a 118-degree standard point angle with web thinning to reduce thrust and improve chip evacuation at drill entry. The shank is machined to a No. 1 Morse Taper (1MT) for direct mounting in compatible drill press spindles and milling machine quills. Manufactured from high-speed steel (HSS) with an oxide finish, the C12170 is built to handle the heat and abrasion typical of production and maintenance drilling operations. Cutting direction is right-hand with a regular spiral flute pattern.

This bit is suited for use in machine shop, maintenance, and fabrication environments where a Morse taper spindle is the standard toolholding interface. The 3.875-inch flute length provides adequate chip clearance for deep-hole applications relative to its diameter. At 7.25 inches overall length, it fits standard No. 1 Morse taper drill press spindles used in light industrial and trade settings. Machinists, millwrights, and tool-room technicians will find this bit appropriate for moderate-volume hole-making in ferrous and non-ferrous stock.

Key Features

• 27/64-inch diameter (0.4219 inches decimal equivalent) with a tight tolerance of +0.0000 to -0.0010 inches
• No. 1 Morse Taper shank for direct spindle mounting without a separate chuck
• 118-degree standard point with web thinning for reduced entry thrust
• High-speed steel construction with oxide finish for heat and wear resistance
• Right-hand cutting, regular spiral flute for reliable chip removal
• Conforms to ASME B94.11M dimensional standard

Compatibility

Designed as an OEM-style replacement or direct-fit tooling for drill presses, lathes, and milling machines equipped with a No. 1 Morse Taper (1MT) spindle or tailstock socket.

Installation Notes

Installation requires a No. 1 Morse Taper spindle or sleeve; ensure the taper socket is clean and free of chips or burrs before seating the shank. Power down and lock out the machine before inserting or removing the bit. Use a drift key and the spindle's drift slot to eject the bit safely — do not strike the bit directly. Verify spindle speed is appropriate for the workpiece material and bit diameter before starting the cut.
