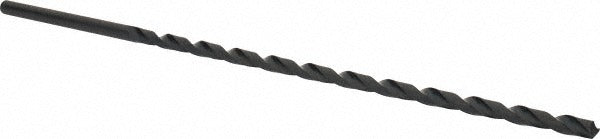

Cleveland C09714 Extra Length Drill Bit 0.2344 in Hss

Product Description

The CLEVELAND C09714 is a high-speed steel extra length drill bit designed for deeper drilling and long-reach drilling applications where standard-length bits fall short. Built to Series 950E specifications, it features a 0.2344-inch diameter, a 118-degree standard point angle, and an oxide finish that provides basic lubricity and corrosion resistance during use. The spiral flute geometry is right-hand cutting with a regular spiral type, and the web is thinned with a tapered web configuration for improved chip evacuation and reduced thrust at the cutting tip. Licensed tradespeople and machinists reach for this bit when access depth is the limiting factor on a job.

This bit is suited for drilling into cast iron and steel in both production and maintenance contexts. The 7.5-inch flute length and 10-inch overall length make it appropriate for through-hole work in thick stock, deep-cavity drilling, and situations where a standard jobber-length bit cannot reach the target depth. It is a general-purpose grade bit, making it a practical choice for a wide range of ferrous material drilling tasks in fabrication shops, mechanical rooms, and field service environments.

Key Features

• Extra length design with 10-inch overall length and 7.5-inch flute length for deep-reach drilling
• High-speed steel construction rated for cast iron and steel workpieces
• 118-degree standard point angle with web thinning for reduced entry thrust
• Oxide finish for basic lubricity and surface protection
• Straight-cylindrical shank with 15/64-inch shank diameter fits standard chucks
• Right-hand cutting spiral flute with tapered web configuration for efficient chip clearing

Compatibility

Designed for use in standard drill chucks accepting a straight-cylindrical shank; compatible with drilling into cast iron and steel workpieces per manufacturer specification. Coolant-through is not supported on this bit.

Installation Notes

Secure the shank fully in a properly sized chuck before operation. Confirm the drill press or handheld drill is powered off and locked out before changing bits. Use cutting fluid appropriate for the workpiece material when drilling steel to extend bit life and reduce heat buildup. Follow shop safety practices and applicable ASME standards when operating drilling equipment.
