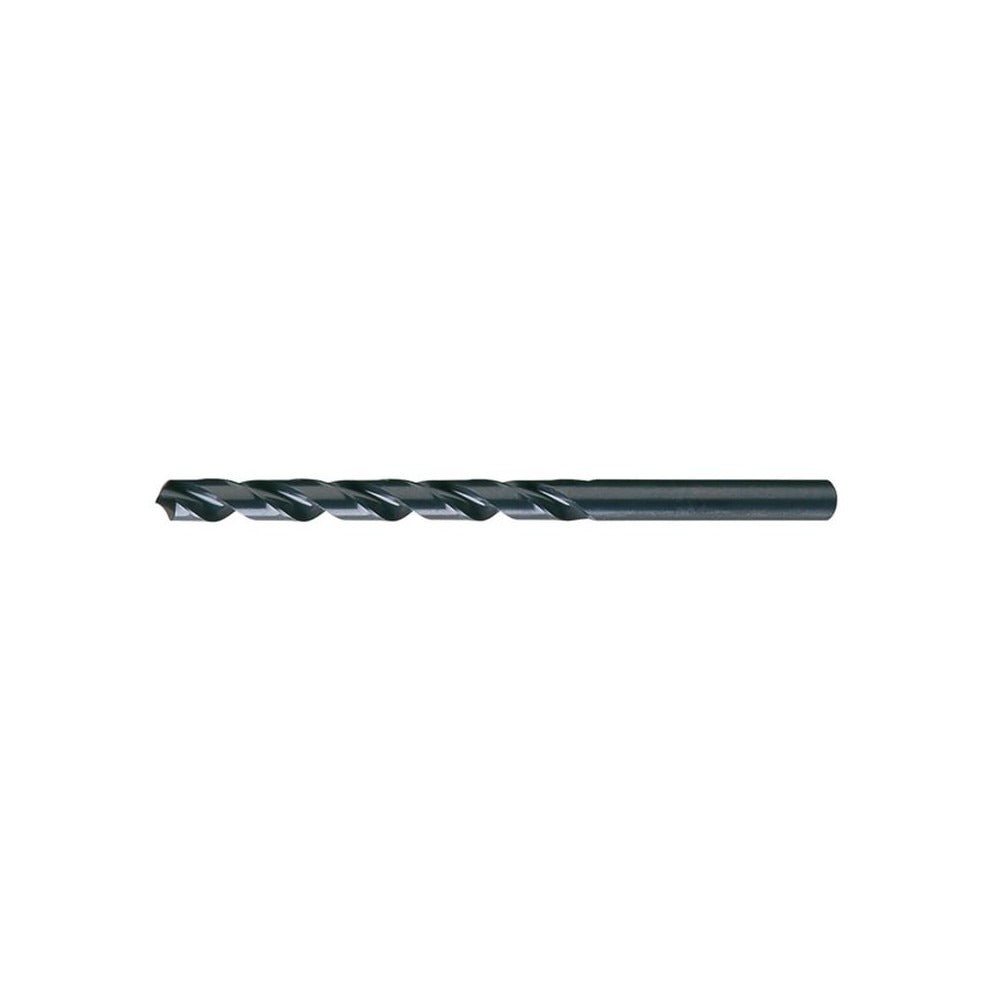

Cleveland C08877 Taper Length Drill Bit 49/64 in Hss

Product Description

The CLEVELAND C08877 is a taper length drill bit engineered for professionals who need extended reach beyond what a jobber-length bit provides. Built from high-speed steel (HSS) with a coated finish, this bit measures 49/64 inch (0.7656 inch) in diameter with a 118-degree standard point angle and a web-thinned, tapered web configuration that reduces thrust at entry. The spiral flute design and right-hand cut suit it for use in drill presses, milling machines, and hand-held power tools across a range of metalworking applications. Overall length is 9-7/8 inches with a 6-inch flute length, giving technicians and machinists the depth capacity needed for deeper hole work.

This bit is suited for drilling alloy steel, carbon steel, and cast iron in industrial, maintenance, and fabrication environments. The straight shank with a 0.7656-inch shank diameter fits standard drill chucks without adapters. The general-purpose grade and ASME B94.11M and DIN 340 compliance make it a reliable choice for production shops, field maintenance crews, and toolroom use where consistent hole quality and dimensional accuracy are required. Diameter tolerance is held to +0.0000 to -0.0012 inch.

Key Features

• High-speed steel construction with coated finish for extended tool life in ferrous metals
• 118-degree standard point angle with web-thinned, tapered web for reduced entry thrust
• 6-inch flute length and 9-7/8-inch overall length provide extended reach capability
• Right-hand spiral flute cuts efficiently in alloy steel, carbon steel, and cast iron
• Straight shank (0.7656 inch diameter) fits standard drill chucks without modification
• Complies with ASME B94.11M and DIN 340 standards for dimensional consistency

Compatibility

Designed for use in standard drill chucks accepting a straight shank at 0.7656 inch diameter. Rated for drilling alloy steel, carbon steel, and cast iron. Part of the Cleveland Series 2510 taper length drill bit line.

Installation Notes

Installation and use of this bit should be performed by qualified machinists or maintenance technicians familiar with drill press and power tool operation. Secure the shank fully in the chuck and verify runout before beginning a cut. Power down and de-energize any machine before changing tooling. Follow applicable shop safety standards and machine manufacturer guidelines for cutting speeds and feed rates appropriate to the workpiece material.
