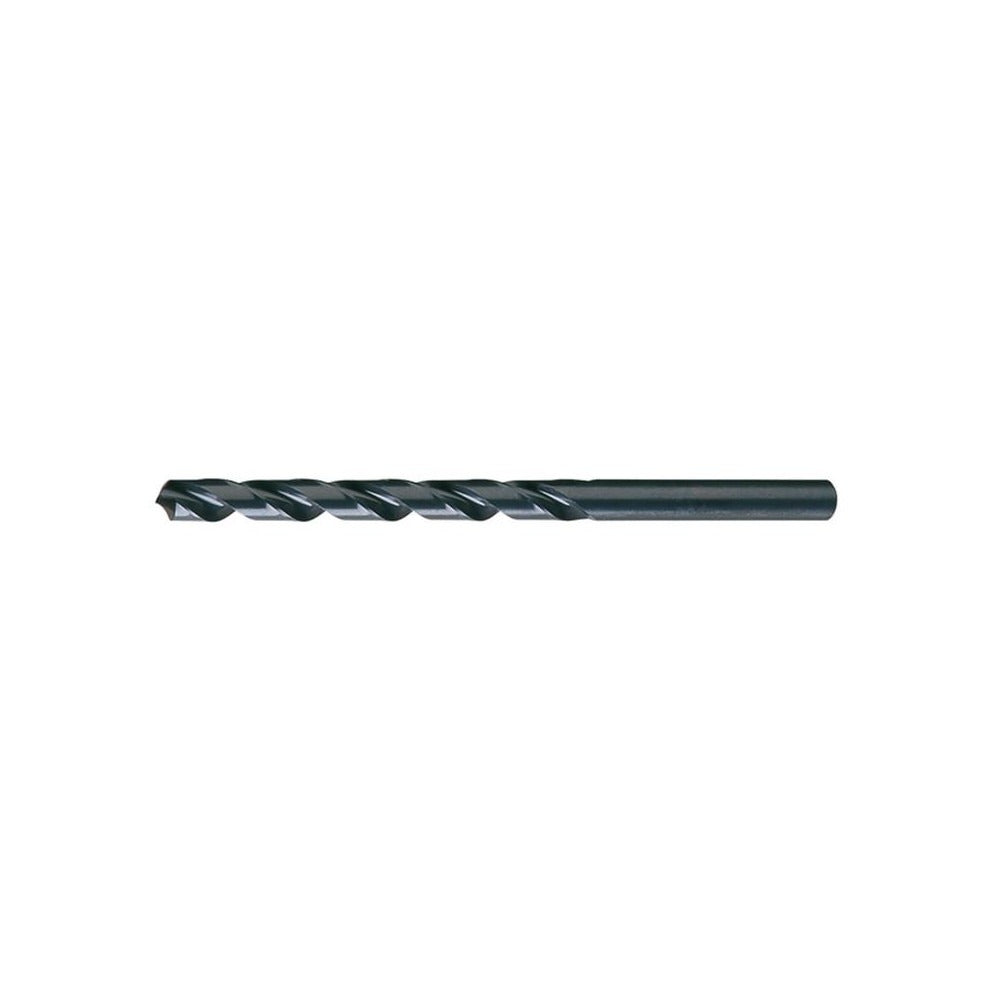

Cleveland C08876 3/4 in Taper Length Drill Bit Hss

Product Description

The CLEVELAND C08876 is a taper length, high-speed steel drill bit engineered for general-purpose drilling in ferrous and non-ferrous metals. Built to the Series 2510 standard, it features a 3/4 inch diameter, a 118-degree standard point angle, and a web-thinned, tapered web configuration that reduces thrust and improves chip evacuation at the cutting edge. The straight shank and spiral flute geometry make it compatible with standard drill chucks across a wide range of machine setups. This bit is coated for improved surface hardness and wear resistance. It is right-hand cut and is suited for machinists, maintenance technicians, and metalworking shops working with alloy steel, carbon steel, and cast iron.

The C08876 taper length design provides extra reach beyond a jobber-length bit while maintaining rigidity. With a 5-7/8 inch flute length and a 9-3/4 inch overall length, it is well-suited for drilling deeper holes in structural steel components, machine bases, and fabricated assemblies. The straight shank diameter matches the bit diameter at 3/4 inch, allowing direct chucking in milling machines, drill presses, and magnetic base drills. This bit is appropriate for both production machining and job-site metalwork where standard jobber bits lack the required reach.

Key Features

• 3/4 inch diameter with a matching 3/4 inch straight shank for direct chuck engagement
• 118-degree standard point angle with web thinning for reduced thrust and cleaner entry
• 5-7/8 inch flute length and 9-3/4 inch overall length for extended reach applications
• High-speed steel construction with coating for improved wear resistance
• Right-hand spiral flute geometry promotes efficient chip removal
• Meets ASME B94.11M and DIN 340 standards for dimensional accuracy and tolerance control

Compatibility

Suitable for drilling alloy steel, carbon steel, and cast iron. Designed as an OEM-style general-purpose taper length drill bit compatible with standard 3/4 inch drill chucks on drill presses, milling machines, and magnetic base drilling equipment.

Installation Notes

This bit is installed and operated by machinists and metalworking technicians using standard drill chucks rated for 3/4 inch shank tooling. Always secure the workpiece firmly and ensure the chuck is fully tightened before operation. Power down and de-energize the machine spindle before changing bits. Use appropriate cutting fluid when drilling cast iron or alloy steel to extend tool life and maintain tolerance.
