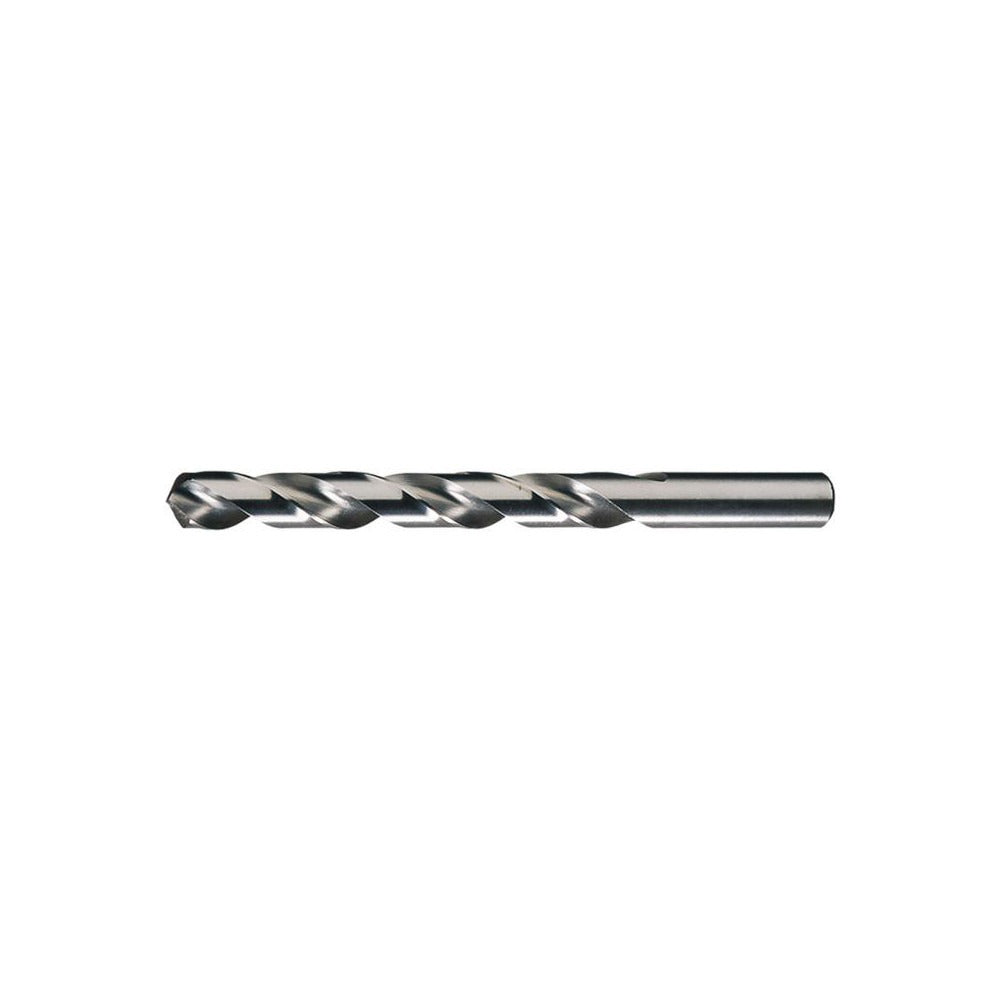

Cleveland C01835 Jobber Length Drill Bit Wire Size 62

Product Description

The CLEVELAND C01835 is a wire gauge size 62 jobber length drill bit designed for precision drilling in light-duty and general-purpose applications. Manufactured from high speed steel with an oxide coating, it delivers reliable performance across a range of workpiece materials. The bit measures 1.5 inches overall length with a 0.625-inch flute length and a straight-cylindrical shank diameter of 0.0380 inches. A 118-degree standard drill point and two-flute spiral configuration provide consistent chip evacuation and accurate hole entry. This bit is suited for use by machinists, maintenance technicians, and trade professionals requiring a small-diameter drilling solution.

The C01835 is intended for general-purpose drilling in aluminum and similarly machinable materials. Its regular spiral flute geometry and web-thinned, tapered web construction reduce thrust during entry and help maintain bit integrity at small diameters. This bit is well suited for bench drilling, hand drilling with a pistol-grip drill, or use in a drill press where small-hole accuracy is critical. It conforms to ASME B94.11M and DIN 338 standards, making it a recognized option for shops and field technicians working to standard specifications.

Key Features

• Wire gauge size 62 with 0.0380-inch decimal diameter for precise small-hole drilling
• High speed steel construction with oxide coating for corrosion resistance and reduced friction
• 118-degree standard drill point angle for accurate positioning on flat and curved surfaces
• Web-thinned, tapered web design reduces cutting resistance and extends bit life
• Right-hand cut, two-flute regular spiral flute for efficient chip removal
• Meets ASME B94.11M and DIN 338 standards

Compatibility

Designed as a general-purpose jobber length drill bit for use in standard drill chucks accepting straight-cylindrical shanks. Primary recommended workpiece material is aluminum, with suitability for other machinable materials consistent with the general-purpose grade designation.

Installation Notes

Installation and use should be performed by qualified machinists or trade professionals familiar with small-diameter drill bits. Secure the workpiece firmly before drilling to prevent bit deflection or breakage at this diameter. Power down and de-energize all equipment before changing or inspecting bits. Do not force the bit or exceed the drill speed recommendations appropriate for the workpiece material and bit diameter.
