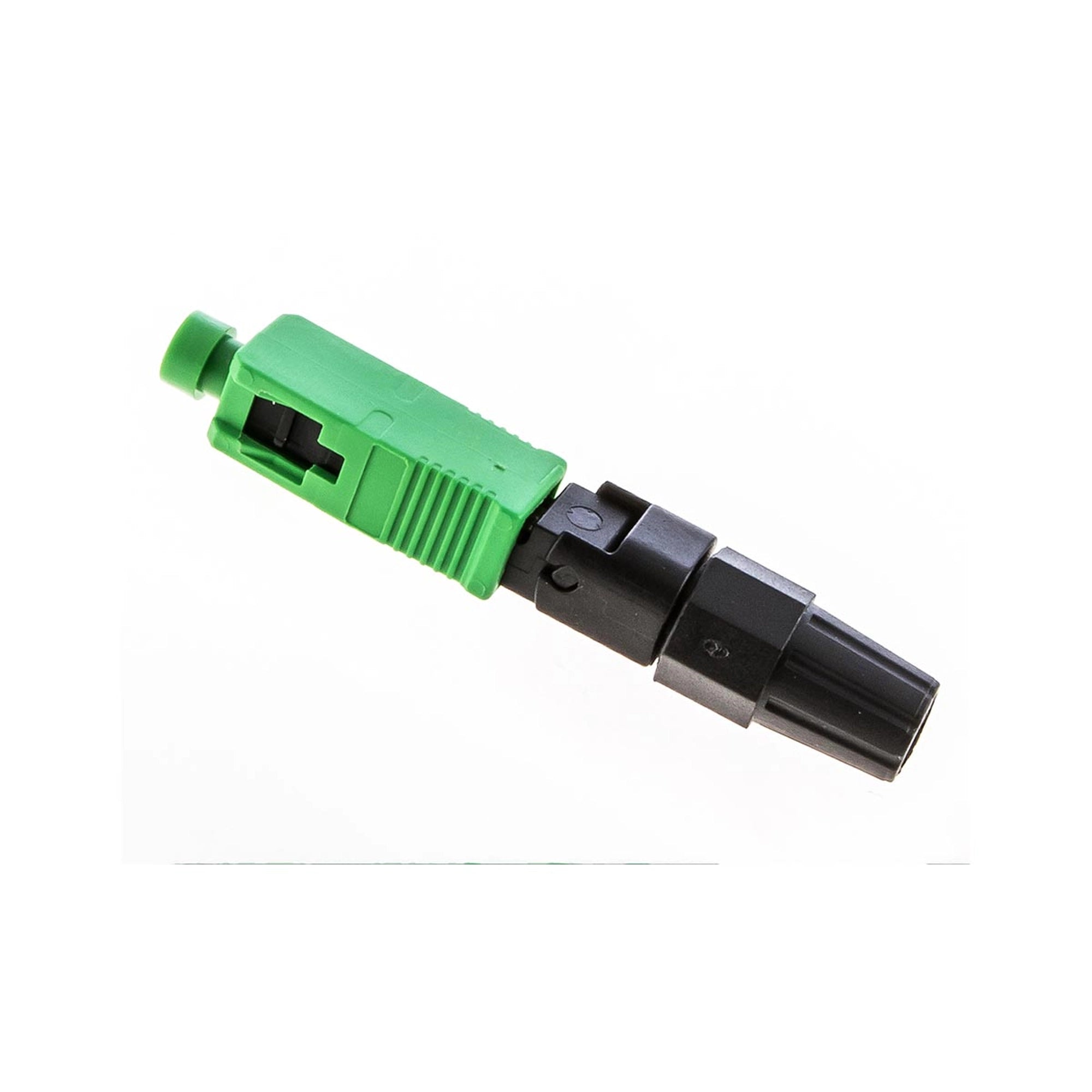

Cleerline Technology Group SSF-SC-SMAPC-10 SSF-SC-SMAPC single-mode angled polished SC connector (10 pack)

Product Description

The Cleerline Technology Group SSF-SC-SMAPC-10 is a single-mode angled polished SC connector. These field-installable connectors eliminate the need for hand polishing, epoxy, or crimping. They ensure precise fiber alignment, producing low loss terminations for all Multimode or Singlemode applications. These connectors are compatible with 900µm, 2.0, and 3.0mm fiber optic cabling.

• Terminate in as little as one minute
• Compatible with 900µm, 2.0, and 3.0mm cables
• No crimping or proprietary tooling required

Product Highlights

Easy to terminate connectors with a hinge-based design and large verification windows for easy confirmation of successful termination.

Product Information

Standard Information

• Brand: Cleerline Technology Group
• Manufacturer Part Number: SSF-SC-SMAPC-10

Technical Specifications

• Connector Type: SC
• Fiber Mode: Single Mode
• Polish Type: Angled (APC)
• Insertion Loss: Typically less than 0.3 dB
• Return Loss: Typically greater than 60 dB
• Compatibility: Standard SC fiber optic cables
• Operating Temperature: -40°C to 85°C (-40°F to 185°F)
• Brand: Cleerline Technology Group
• Connection Type: SC/APC
• Fiber Type: Singlemode
